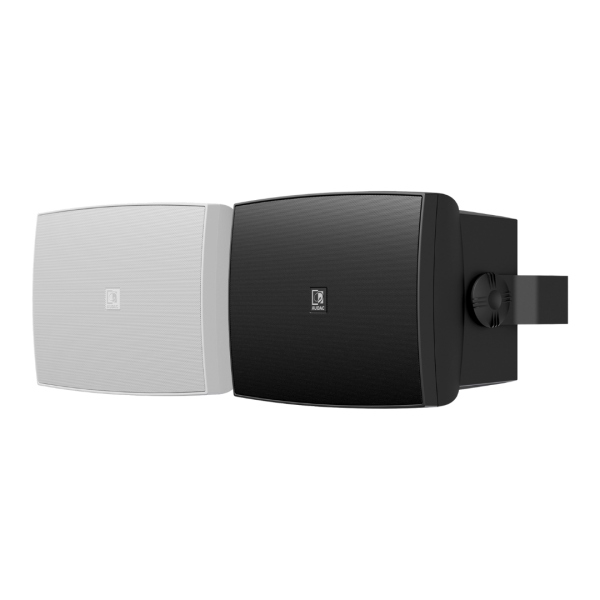

The WX802/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It lends itself to a wide variation of outdoor applications, ensuring a clear and powerful sound reproduction. Hereby, the WX802/O is the perfect companion for outdoor applications where clear background music is desirable throughout the day and a more powerful sound with deeper bass is necessary when the party erupts after sunset. The sound is coming from a weatherproof treated 8” low-frequency loudspeaker in combination with a 1” dome tweeter which is built in an aesthetical and solid synthetic enclosure.
The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX802/O vertically as well as horizontally.

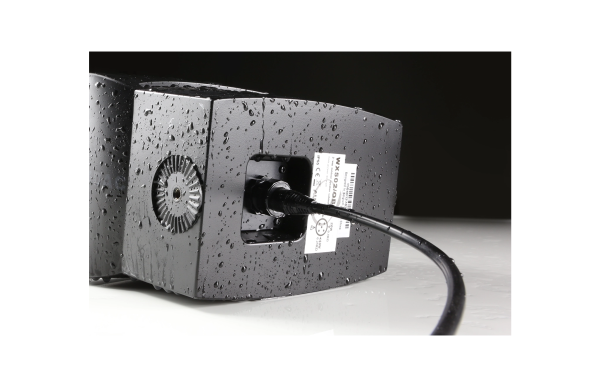

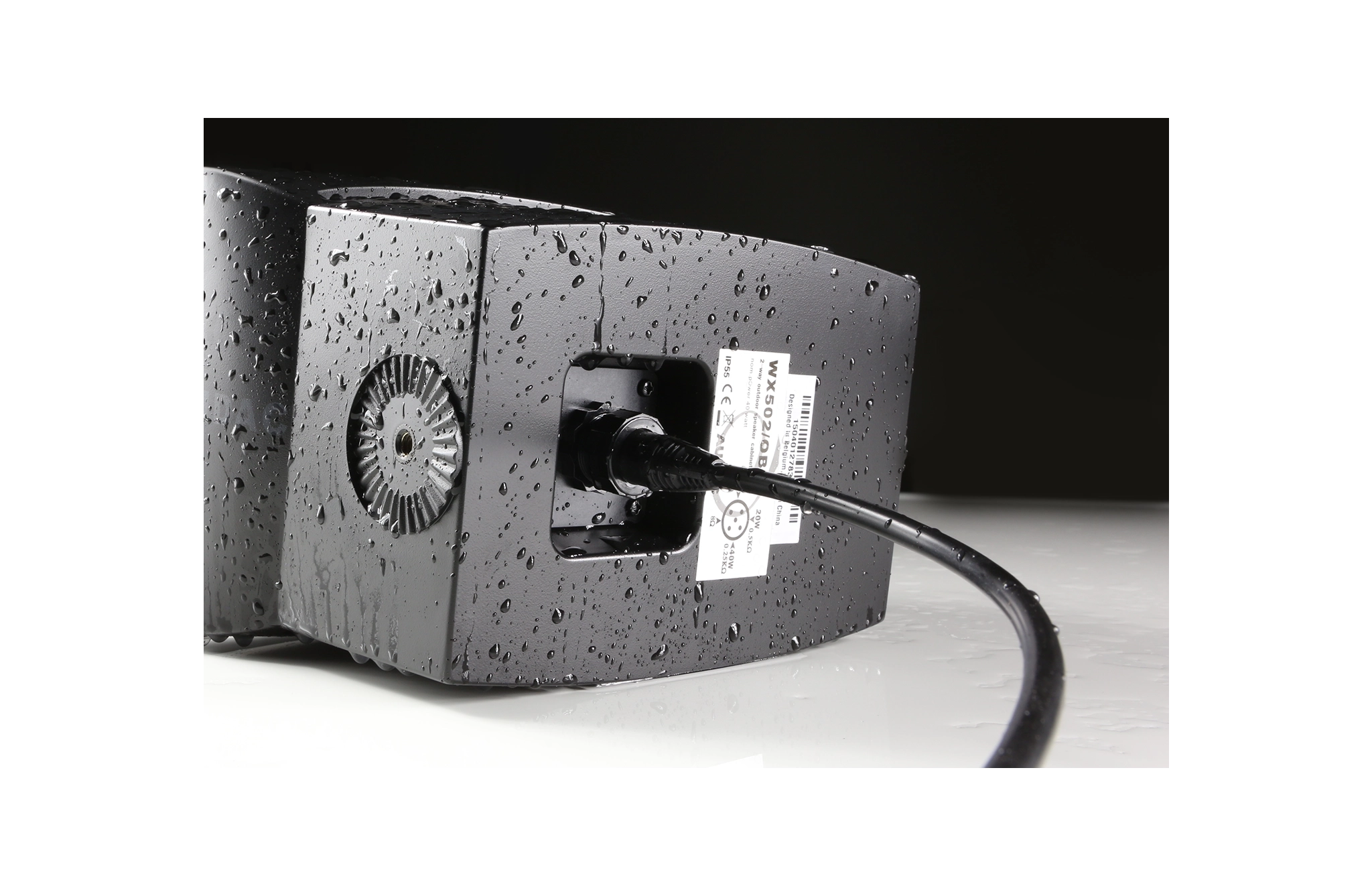

Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum front grill allows letting the moisture flow out when condensation occurs. The waterproof AWX-5 connector at the backside makes sure that this speaker meets the IP55 standards.
SYSTEM SPECIFICATIONS
| Speaker type | 2-way | |
| Peak power handling | 280 W | |
| Program power handling | 140 W | |
| Continuous power (AES) | 70 W | |
| Impedance | 16 Ω | |
| Sensitivity (1W/1m) | 89 dB | |
| Sound Pressure (Max. W/1m) | @ 16 Ω | 108 dB |
| @ 100 V | 106 dB | |
| Frequency | Response (± 3 dB) | 60 Hz – 17 kHz |
| Range (-10 dB) | 50 Hz – 20 kHz | |
| Crossover | Frequency | 2.4 kHz |
| Type | Passive built-in | |
| Dispersion | Horizontal | 110° |
| Vertical | 110° | |
| Ingress Protection rating | IP55 | |
| Connectors | Waterproof AWX-5 connector | |
| Drivers | HF | 1” |
| LF | 8” | |
| Line Transformer Tappings | 1 | 83 Ω – 100 V / Not used – 70 V / 60 W |
| 2 | 167 Ω – 100 V / 60 W – 70 V / 30 W | |
| 3 | 333 Ω – 100 V / 30 W – 70 V / 15 W | |
PRODUCT FEATURE
| Dimensions | 270 x 360 x 215 mm (W x H x D) | |
| Weight | 7.500 kg | |
| Operating temperature | -25 °C ~ 70 °C | |
| Construction | ABS | |
| Mounting & handling | Mounting bracket | |
| Front finish | Aluminium grill | |
| Colours | Black (RAL9005) (WX802MK2/OB) | |
| White (RAL9003) (WX802MK2/OW) | ||
| Accessories | Included | Mounting bracket |
| 5-pin connection cable (70 cm) AWC07 | ||
| Optional | AWC07 – AWX5 cable 0.7 m | |
| AWC25 – AWX25 cable 2.5 m | ||
| AWC50 – AWX50 cable 5 m | ||
VARIANTS
- WX802MK2/OB – Outdoor black version
- WX802MK2/OW – Outdoor white version
- Discontinued WX802/OB – Black version
Replaced by WX802MK2/OB - Discontinued WX802/OW – White version
