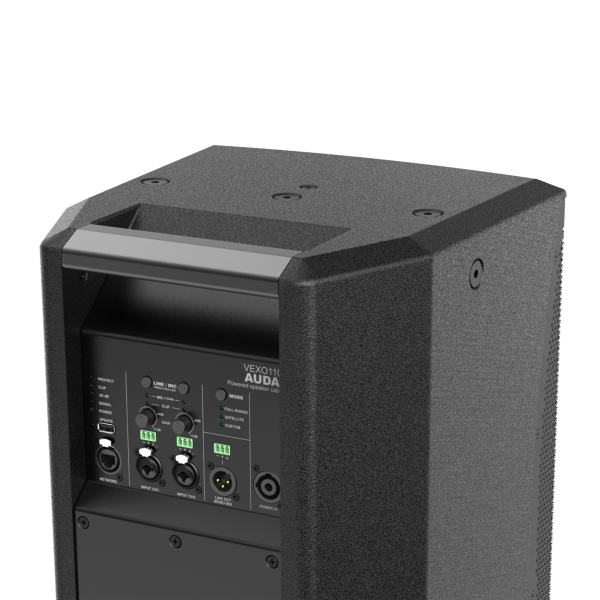

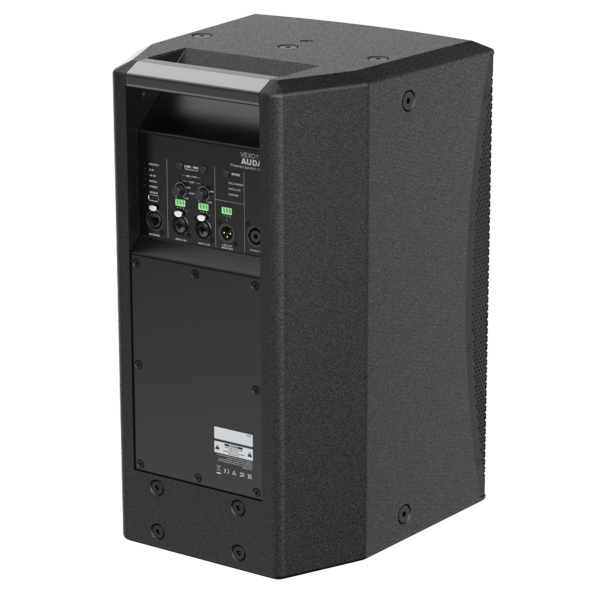

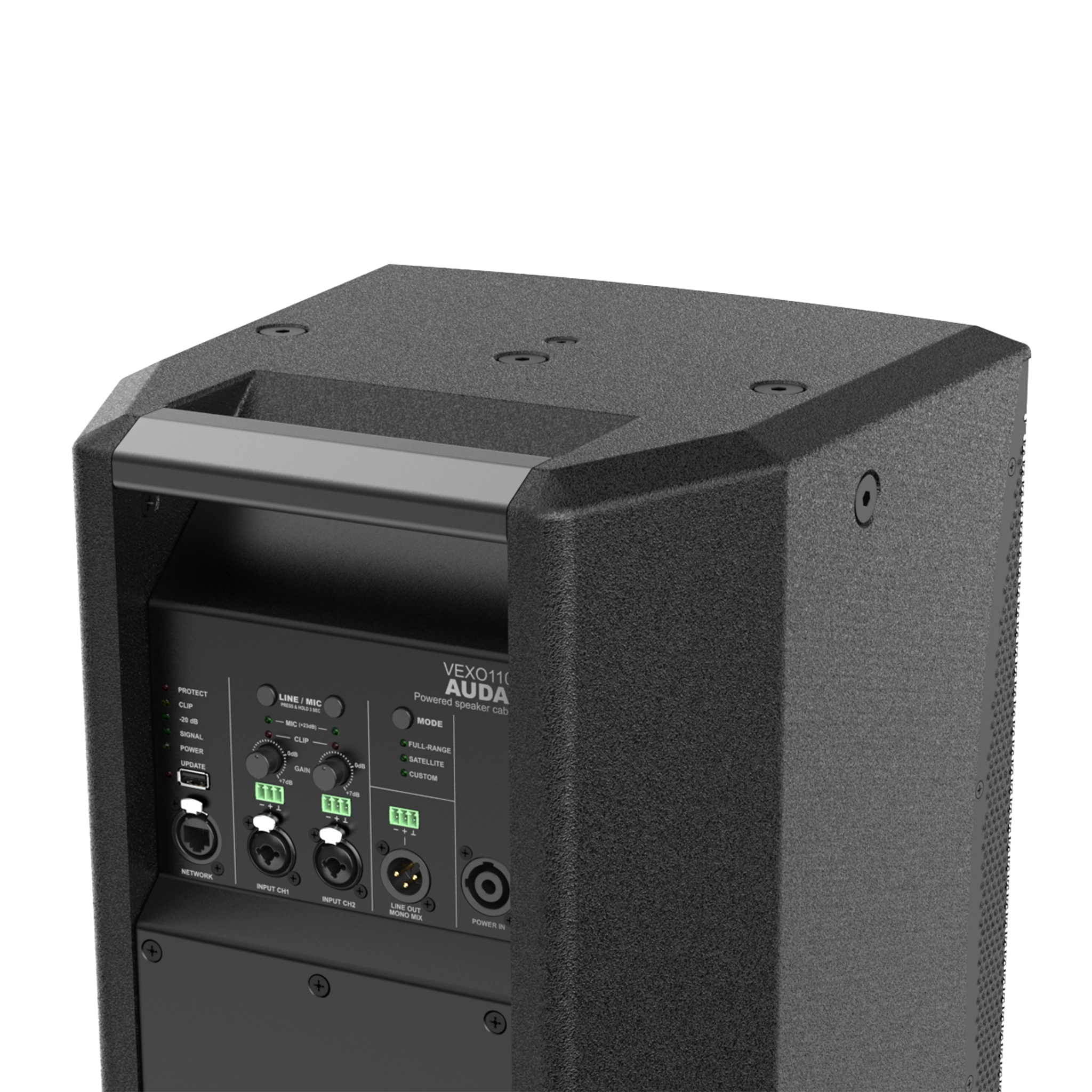

The VEXO1xx series are compact high performance 2-way loudspeakers and come in 5 different (active or passive) models. The low-frequency transducer, which is made out of high-quality materials, is combined with a 1″ (VEXO106), 1.4″ (VEXO108) or 1.7″ (VEXO110, VEXO112 & VEXO115) voice coil compression driver, enabling high sound pressure levels and a tight driver response with a rotatable 90° x 70° coverage pattern for a wide range of applications.
Thanks to the unique driver composition, the VEXO110A delivers a clear and natural sound with an continuous power of 300 Watts and a maximum power of 1200 Watt. The frequency response (±3dB) starts from 65Hz up to 20 kHz and the sensitivity (1W/1m) reaches 96dB while a maximum continuous sound pressure level from 121dB can be achieved.
When not in use, the active versions of the VEXO series devices automatically go into an energy-saving standby mode. This means that active versions can also be used in fixed installations, as there is no need to physically shut them down after each use.
The construction of the cabinets is made of 15 mm plywood with a polyurethane coating, making them resistant to any impact. The front side of the cabinet is finished with a powder-coated steel grill with acoustical foam. A recessed carry handle on the rear side makes carrying easy. Positioning and suspension of the speaker are easily achieved by using the standard 35 mm pole adapter on the bottom and the M10 rigging points. Two speaker connectors provide reliable connections with easy link-through to cabinets.
The optional Clever U bracket allows mounting the high power 2-way cabinet both horizontally and vertically. An inclination of -90° to +35° ensures an optimal positioning. The optional MBK bracket even allows mounting the VEXO series to the ceiling which gives the opportunity to install the loudspeaker cleanly in any environment.
By installing the optional ANI44XT Dante™ audio network interface in the active loudspeaker, the VEXO series can be integrated into any Dante enabled AV network and transfer digital audio with any compatible solution on the market.
SYSTEM SPECIFICATIONS
| Speaker type | 2-way | ||
| Peak power handling | 1200 W | ||
| Program power handling | 600 W | ||
| Continuous power (AES) | 300 W | ||
| Impedance | 8 Ω | ||
| Sensitivity (1W/1m) | 96 dB | ||
| Sound Pressure (Max. W/1m) | 121 dB | ||
| Frequency | Response (± 3 dB) | 65 Hz – 20 kHz | |
| Dispersion | Horizontal | 90° | |
| Vertical | 70° | ||
| Crossover | Type | Passive built-in | |
| Drivers | HF | Compression driver with 1.7″ VC and 1″ throat | |
| LF | 10″ (2.5″ VC) | ||
| Connectors | Remote control | RJ45 | |
| Input | 2 x Combo XLR / 6.3 mm jack | ||
| 3-pin Euro Terminal Block (Pitch – 3.81 mm) | |||
| 3-Pin terminal block (linkthrough) | |||
| XLR male (linkthrough) | |||
| Inputs | USB port | ||
| RJ45 (Ethernet) | |||
| Power | Consumption | Standby | 3.2 W |
| Idle | 22.5 W | ||
| AC Inputs | Voltage | 110 ~ 240 V AC / 50 ~ 60 Hz | |
PRODUCT FEATURE
| Dimensions | 329 x 540 x 345 mm (W x H x D) | |
| Weight | 18 kg | |
| Construction | 15 mm high-quality plywood | |
| Finish | Cabinet finishing | Polyurethane coating |
| Front finish | Powder coated steel grill with acoustical foam | |
| Mounting & handling | Rigging points | 10 x M10 |
| Stand fitting | 35 mm pole adapter on bottom | |
| Powerdrive mount | Powerdrive type 75 (108 x 50,8 mm) | |
| Mounting & handling | Carry handles | On top |
| Colours | Black & White | |
| Accessories | Optional | ANI44XT – Dante™/AES67 audio network interface |
| MBK110V Mounting bracket | ||
VARIANTS
- VEXO110A/B – Black version
- VEXO110A/W – White version
