TASCAM Sonicview 24

Digital Recording and Mixing Console with Multi-Environment Touch Screens

TASCAM Sonicview recording mixing consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, built-in multi-track SD recording*, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview recording mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.

SPECIFICATIONS

• Overall dimensions : 690.8(W) x 228.1(H) x 554.4(D) mm, 27.20 (W) x 8.99(H) x 21.83 (D) inch
• Weight : 18kg / 39.69lb
• Power consumption : 85W

KEY FEATURES

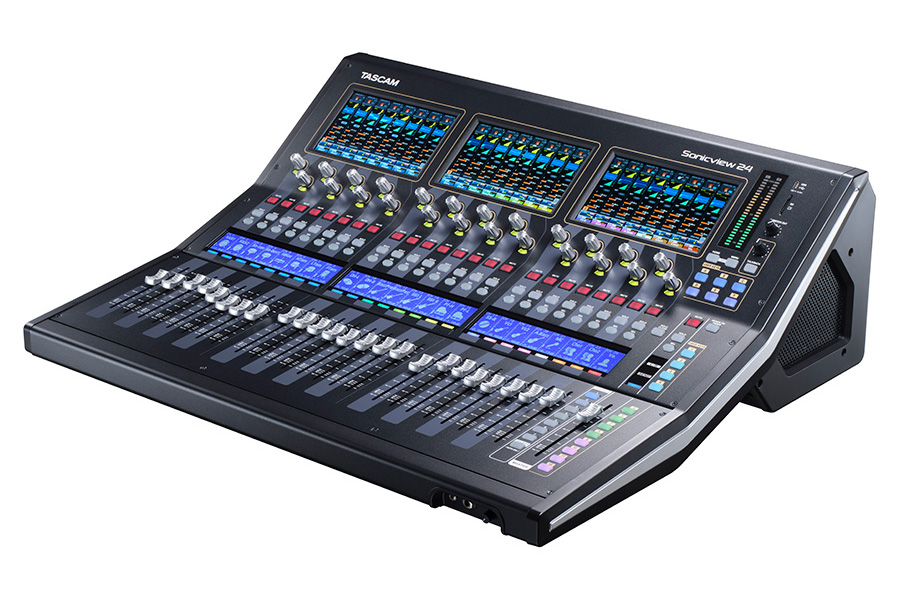

• TASCAM VIEW (Visual Interactive Ergonomic Workflow) interface supports intuitive operation with three different view system
• 44 input channels (or 40 mono input channels and 2 stereo input channels) and 4FX return
• 22 flexible output buses and main L/R bus with 31-band graphic EQ
• Ultra-low latency: 2 x samples (20.8μS) in mixing engine, 0.51 ms analog-to-analog
• 32-in/32-out, 32-bit/96 kHz USB audio interface
• Built-in 32-track SDXC recorder
• 64-in/64-out built-in Dante interface; supports redundancy and DDM, AES67 and SMPTE ST 2110 interoperability

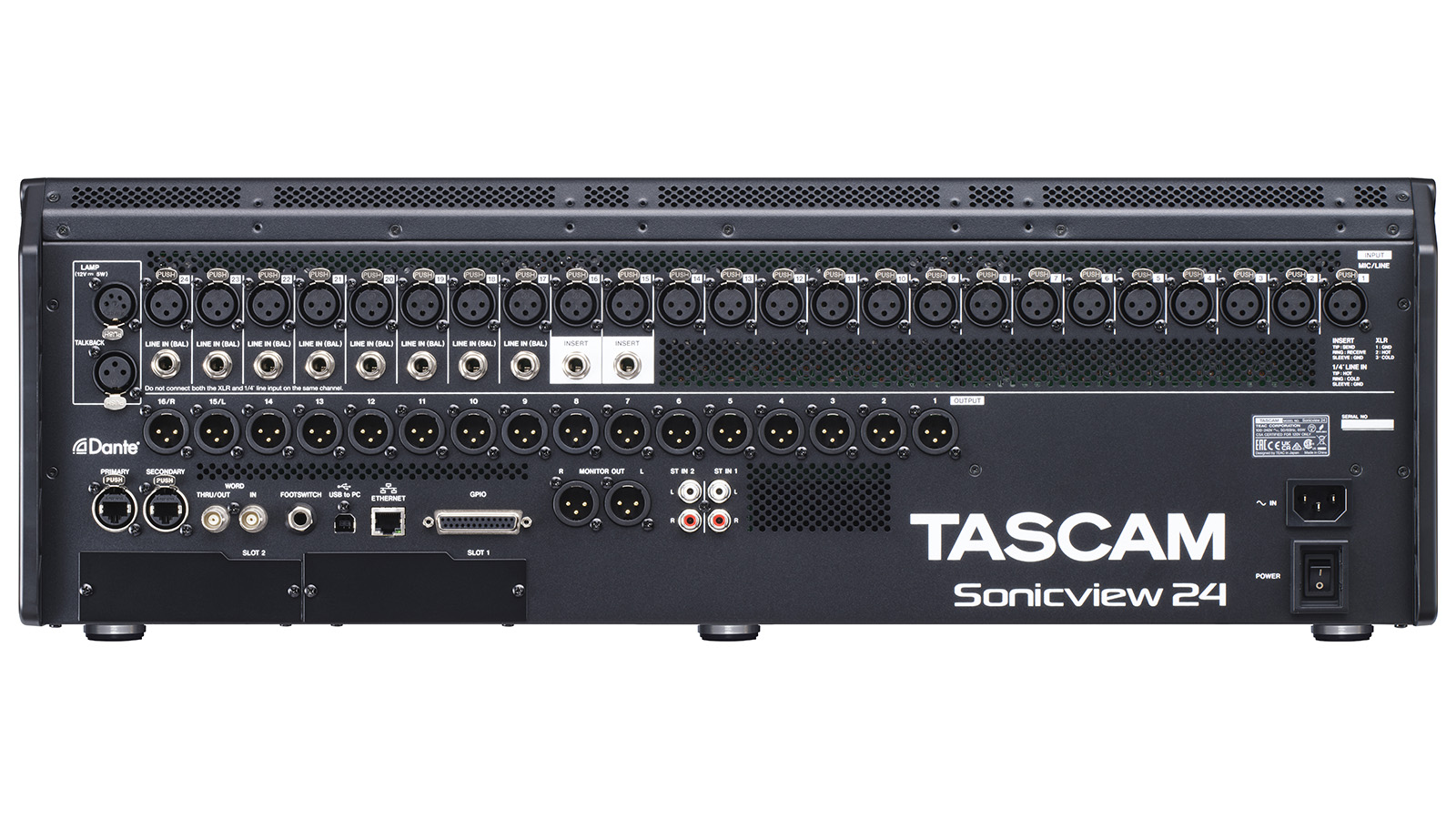

• 24 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
