The SMQ series are quad-channel power amplifiers providing a new standard for affordable audio amplification in both fixed and mobile audio installations. Their advanced features and availability in different output powers for 350 Watt, 500 Watt, 750 Watt and 1250 Watt provide enormous flexibility for numerous applications.

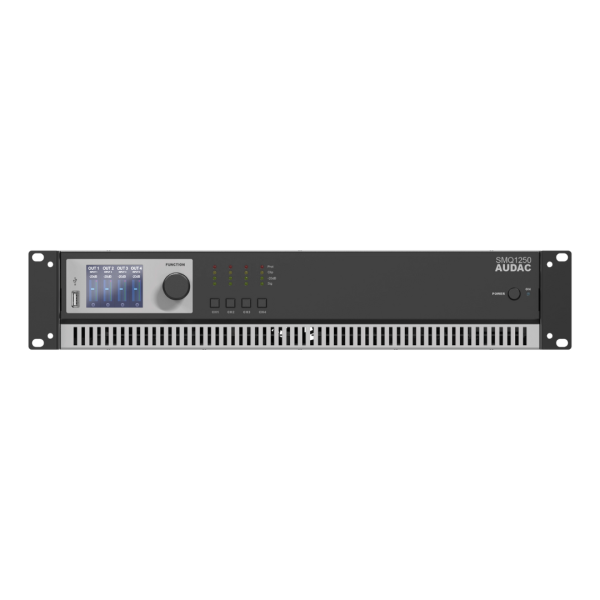

The WaveDynamics™ DSP processor in combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration. Acoustics can be optimized using Butterworth, Bessel and Linkwitz-Riley filters with selectable roll-off which can be configured as Low / High & Band Pass and the 7-Band equalizer which has adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using a password or USB-key protection.
Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured. Configuration is made simple with loudspeaker presets and full system configurations which can be selected from a library and uploaded with a USB flash drive. This ensures the best acoustical performance with bullet-proof loudspeaker protection.
SYSTEM SPECIFICATIONS
| Frequency | Response (± 3 dB) | 20 Hz – 20 kHz |
| Signal / Noise | > 95 dB | |
| THD+N (@ 1 kHz) | < 0.05% (1/2 Rated Power) | |
| Crosstalk (@ 1 kHz) | > 70 dB | |
| Technology | Class-D | |
| Inputs | Sensitivity | -19.5 dB ~ 27 dB |
| Impedance | 10 kΩ balanced | |
| Connector | XLR & 3-pin Euro Terminal Block (3.81 mm) | |

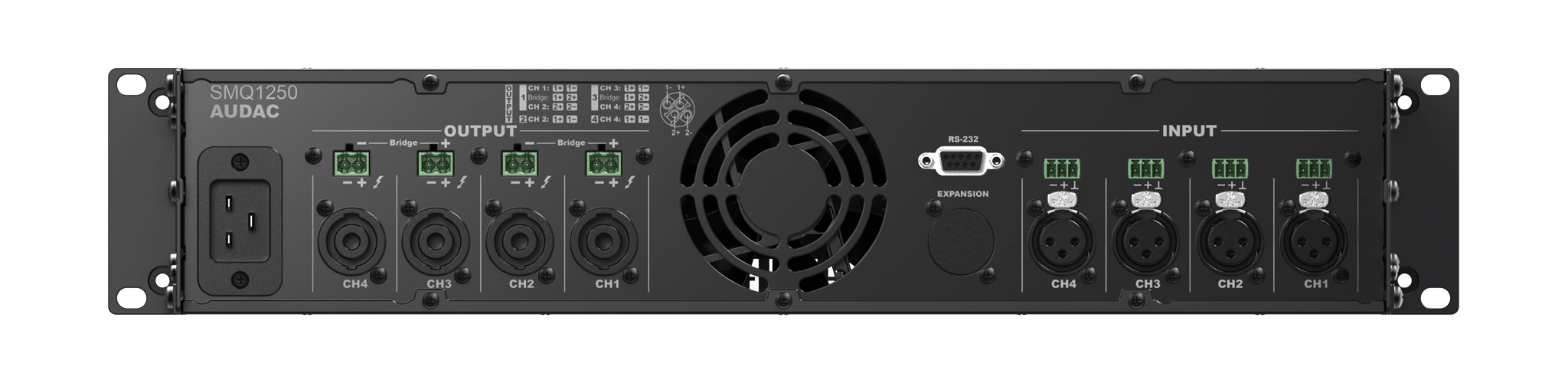

| Outputs | Connector | Speakon compatible & 2-pin Euro Terminal Block (5.08 mm) |
| Common mode rejection ratio | 70 dB | |
| Damping factor | > 200 | |
| Protection | Amplifier | DC Short circuit |
| Over heating | ||
| Over load | ||
| Signal limiting | ||
| Loudspeaker | Power limiter | |
| Access | User & Administrator level (Through password and USB-key protection) | |
| Cooling | Temperature controlled fan | |
| Operating temperature | 0° ~ 40° @ 95% Humidity | |
| Power | Supply | Switching mode |
| 115 ~ 240 V AC / 50 ~ 60 Hz | ||
| Continuous power (AES) | @ 4 Ω Stereo | 4 x 1250 W |
| @ 8 Ω Bridge | 2 x 2500 W | |
| @ 8 Ω Stereo | 4 x 630 W | |
PRODUCT FEATURE
| Dimensions | 482 x 88 x 420 mm (W x H x D) |
| Weight | 9.76 kg |
| Mounting | 19” |
| Unit height | 2 HE |
| Construction | Steel |
| Colours | Black |
