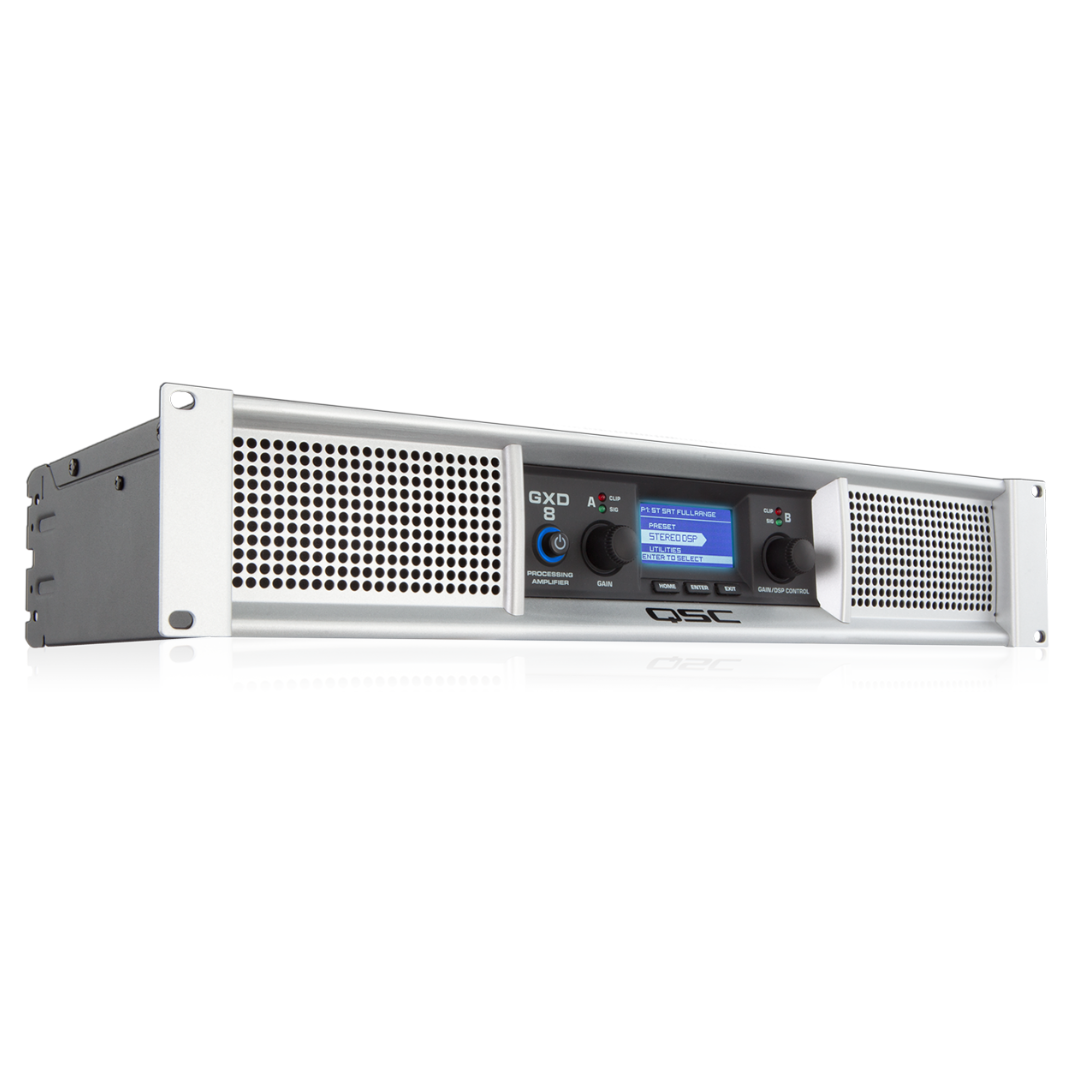

QSC GXD8
Professional Power Amplifiers
FEATURES

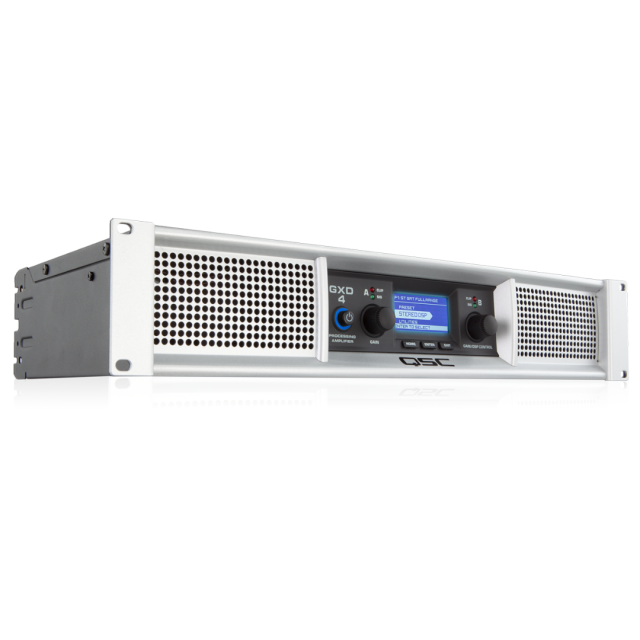

- High peak output power with up to 1600 watts from the GXD 4 and a whopping 4500 Watts from the GXD 8.
- Power levels matched to the most popular loudspeakers and optimized for maximum real-world headroom into 4Ω and 8Ω speaker systems.
- Class D output stage with a universal power supply for high performance and efficiency.
- Extensive and powerful loudspeaker processing built in. Includes high and low-pass filters, 4-band parametric EQ, limiting, and delay.
- E Series Entertainment System DSP Tunings are now available for GXD processing amplifiers:
– Visit the GXD Firmware Updater to download and update
- Large LCD display simplifies amplifier setup and indicates amp status.
- Inputs: Parallel XLR and 1/4-inch TRS connectors for compatibility with any source while providing convenient loop-thru capability.
- Precision rotary encoders for gain and DSP parameter control.
- Outputs: Professional binding post and NL4 connectors (compatible with NL2) provide for mono and bi-amp speaker connections.
- Digital limiting automatically protects the amplifier from damage due to temperature rise or overdrive.
- Adjustable speaker protection to match your loudspeaker’s power and impedance.
- Front panel LEDs indicate signal presence, input overload, and amplifier clipping.
SPECIFICATIONS
| Category | Specification |
|---|---|
| Output Power per Channel | |
| 8Ω Dynamic (both channels) | 1500 W |
| 4Ω Dynamic (both channels) | 2250 W |
| 8Ω Continuous (both channels) | 800 W |
| 4Ω Continuous (both channels) | 1200 W |
| Distortion (1 kHz, full rated power) | < 1% THD |
| Signal to Noise (A-weighted, 20 Hz–20 kHz) | 100 dB |
| Input Sensitivity | 1.2 Vrms, 3.9 Vrms |
| Maximum Voltage Gain | 36.5 dB |
| Output Circuitry | Class D |
| Power Requirements (1/8 power @ 4Ω) | |
| – 100 V AC | 6.2 A |
| – 120 V AC | 5.6 A |
| – 230 V AC | 3.2 A |
| Frequency Response (20 Hz–20 kHz) | +0.7 dB, -0.8 dB |
| Dynamic Headroom (4Ω) | 2.73 dB |
| Damping Factor (8Ω) | 100 |
| Input Impedance | 20 kΩ (balanced), 10 kΩ (unbalanced) |
| Maximum Input Level | +23.5 dBu |
| Input Connectors (each channel) | 3-pin XLR/F / 1/4-inch TRS, balanced |
| Output Connectors (each channel) | NL4, binding posts |
| NL4 Pinout | Ch A: 1+/1-, Ch B: 2+/2- and 1+/1- |
| Amplifier/Load Protection | Short circuit, open circuit, thermal, RF, DC fault |
| Front Panel Controls & Indicators | 2 Rotary Encoders, 3 Buttons (HOME, ENTER, EXIT), Signal LEDs, Clip LEDs, Power LED, LCD display |
| LCD Display | 2.12″ × 1.0″, 256 × 128 pixels |
| DSP Functions | High-pass & Low-pass filters (20–4kHz), 4-band PEQ, peak limiter, delay (max 50 ms) |
| Product Dimensions (H×W×D) | 89 × 483 × 259 mm (3.5 × 19 × 10.2 in) |
| Carton Dimensions (H×W×D) | 600 × 370 × 153 mm (23.6 × 14.6 × 6 in) |
| Net Weight | 6 kg / 13.2 lb |
| Shipping Weight | 7.9 kg / 17.4 lb |
| Agency Approvals | UL, CE, RoHS/WEEE |
| Carton Contents | Power cable, Quick Start Guide |
