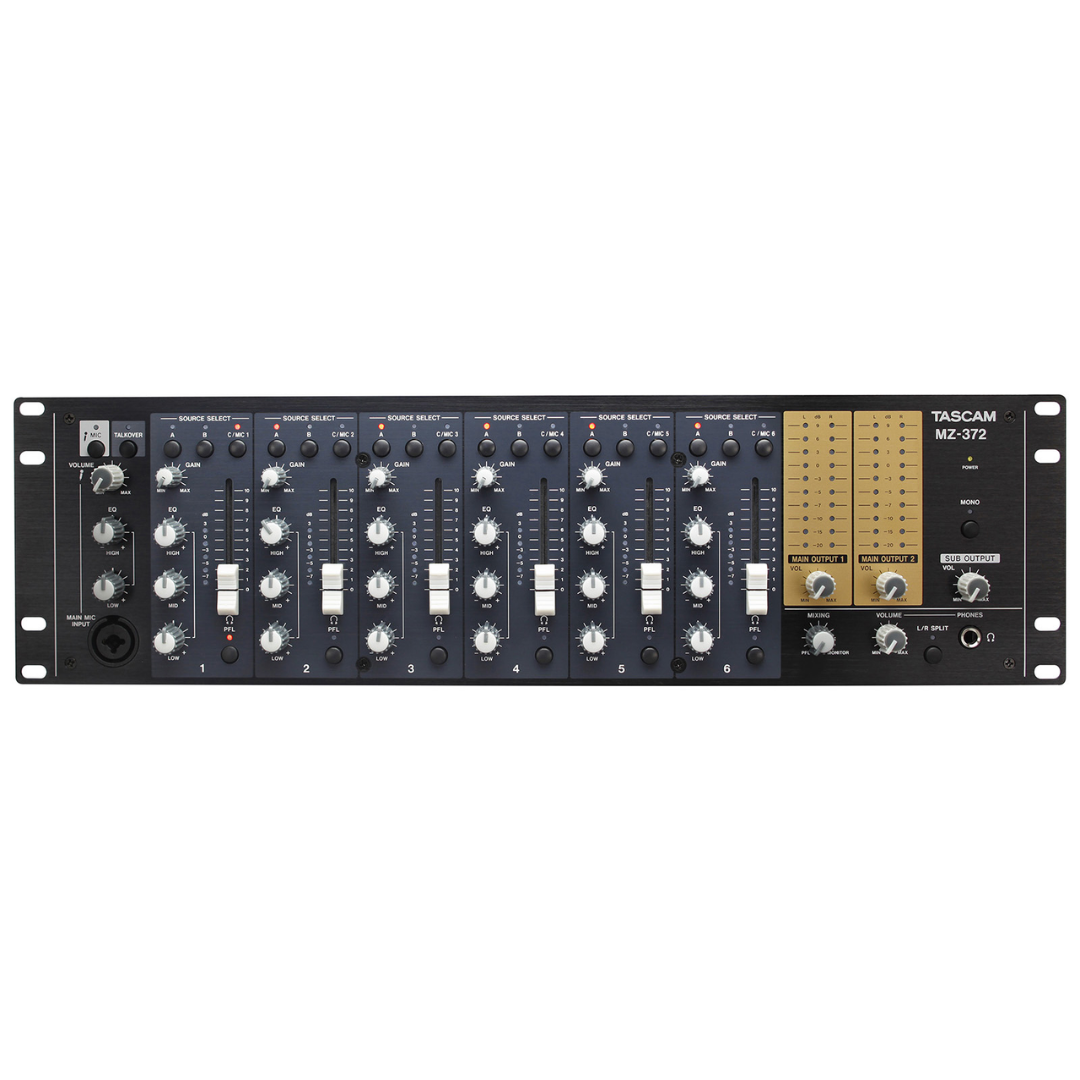

MZ-372

Description

Professional Mixer for Centralized Management of Various Input Sources from a Single Unit

Designed for permanent installation, the TASCAM MZ-372 offers versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package. For maximium flexibility, source content can include music, spoken word (microphone), turntable, and more – all easily controlled via familiar sliders and assignment controls.

Specs

• Power consumption : 35W
• Dimensions : 482(W)×132(H)×93.2(D)mm
• Weight : 3.2kg

Key Features

• Maximum flexibility for audio routing, input selection, and multiple redundant output flow, perfect for integrator, musical instrument, and residential applications

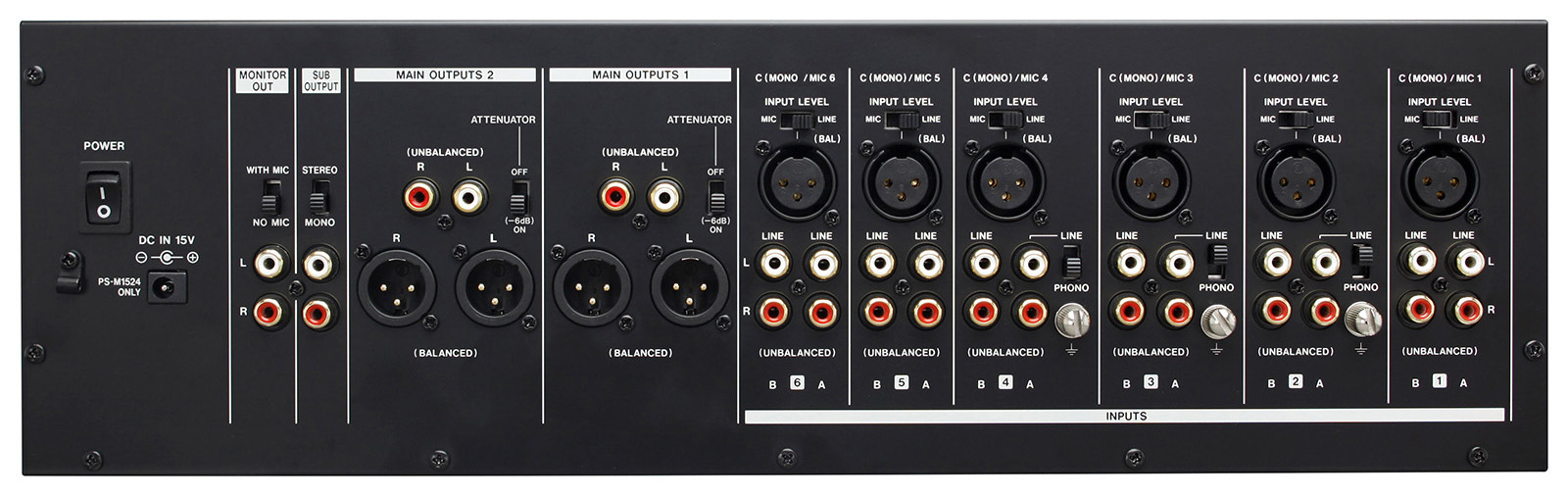

• Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input “sets”
• Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
• Two redundant output channels each with stereo XLR balanced and unbalanced RCA-type connectors; each with separate volume control
• Separate stereo booth, recording, and headphone outputs each with independent control
• One additional mic-compatible XLR input on the front panel with “Talkover” function automatically lowering source audio
• Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
• Compact 3U rack mount design
