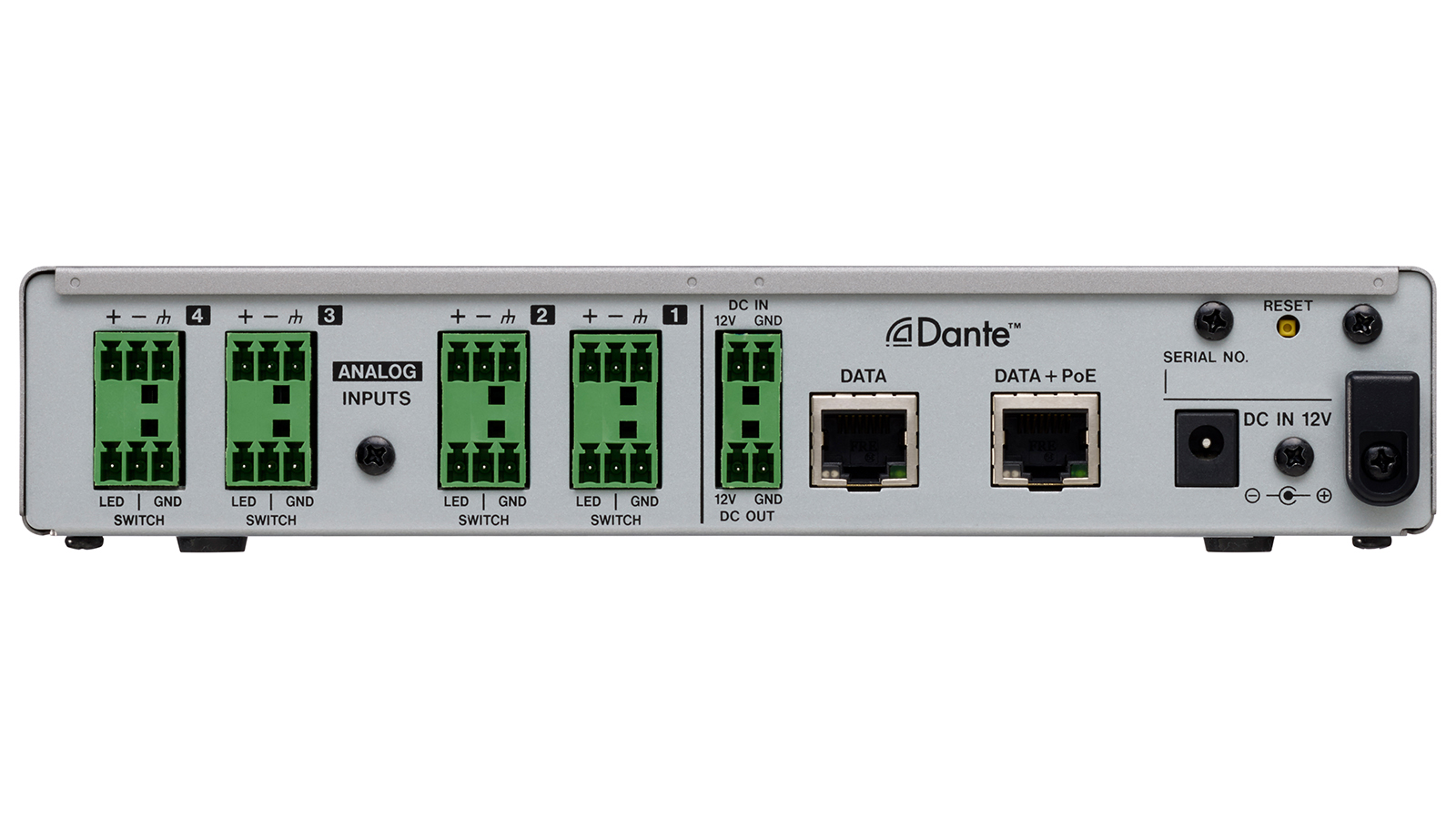

MM-4D/IN-E

4-Channel Mic / Line Input Dante Converter with built-in DSP Mixer

Description

Description

Built-in DSP 4 mic/line input Dante converter to respond to various needs of contractor market and professional audio scene.

The MM-4D/IN-E is a compact converter that converts 4-channel mic/line input signals into Dante signals. With half the size of a standard 1U rack, the MM-4D/IN-E is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-4D/IN-E supports up to 96kHz/24bit and uses Euroblock connectors for analog mic/line input.

Specs

  • Power : PoE class 0, TASCAM PS-P1220E
  • Power consumption : 7.5W
  • Dimensions : 214(W) × 44.45(H) × 136.1(D)mm
  • Weight : 885g

Key Features

  • 4-channel mic/line input with phantom power (+48v) support (Euroblock)
  • Supports remote mic gain control
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 8 in/4 out matrix mixer)
  • 2 types of user control software available for Windows/Mac/iOS/Android devices:
    For full control: input/output routing selection, DSP/design/scene settings of the complete system, etc.
    For simple control: simple app design for only the necessary functions such as area volume settings, etc.
  • Half-rack mountable size
  • Equipped with signal indicators that monitor line input signals
