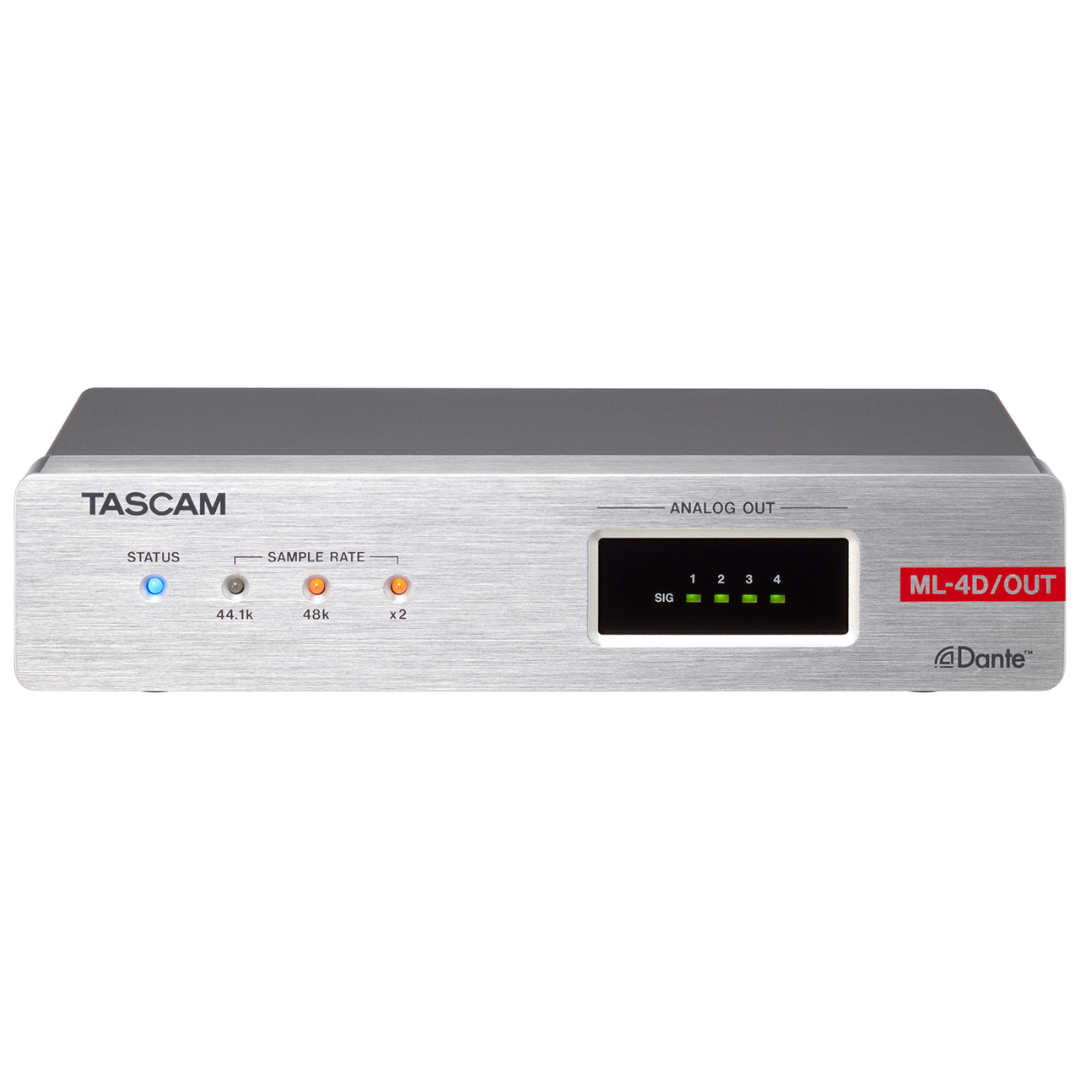

ML-4D/OUT-E

Description

Built-in DSP 4 line outputs Dante converter to respond to various needs of contractor market and professional audio scene.

The ML-4D/OUT-E is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-E is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-E supports up to 96kHz/24bit and uses Euroblock connectors for analog line output.

Specs

• Power : PoE class 0, TASCAM PS-P1220E
• Power consumption : 4W
• Dimensions : 214(W) × 44.45(H) × 136.1(D)mm
• Weight : 863g

Key Features

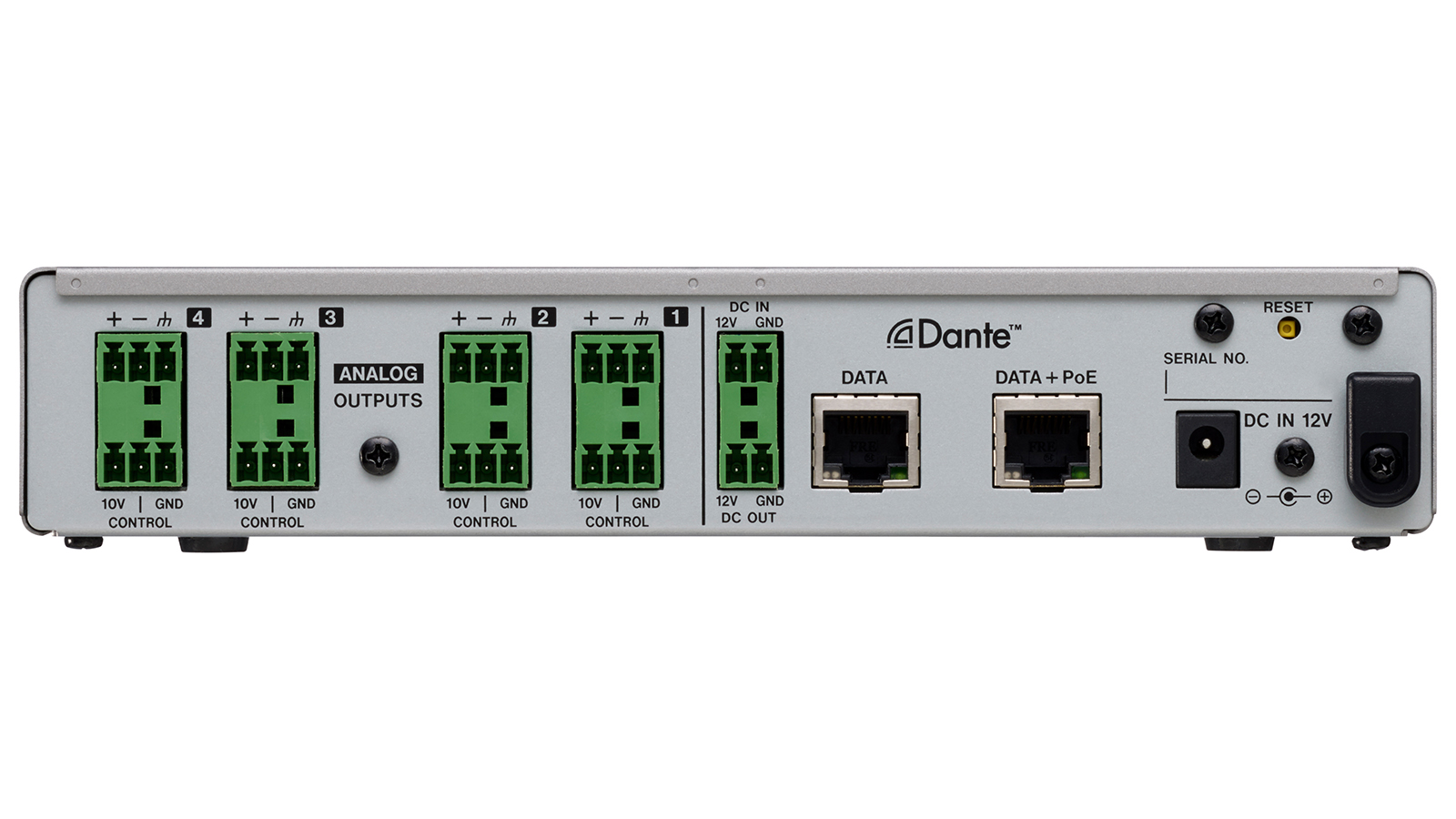

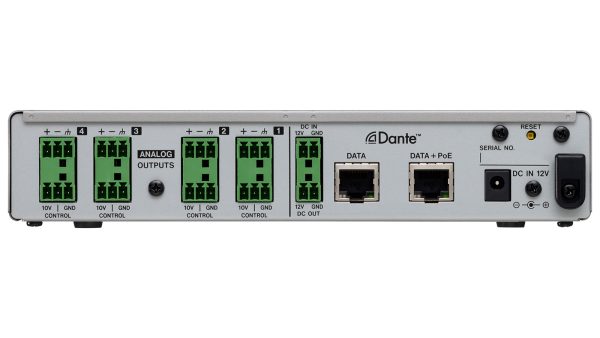

• 4 balanced line output (Euroblock)
• 4 Dante input/output
• Supports PoE (Power over Ethernet)
• Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 4 in/4 out matrix mixer)
• 2 types of user control software available for Windows/Mac/iOS/Android devices:
  For full control: input/output routing selection, DSP/design/scene settings of the complete system, etc.
  For simple control: simple app design for only the necessary functions such as area volume settings, etc.
• Half-rack mountable size
• Equipped with signal indicators that monitor line output signals
