ML-32D

Description

A powerful and flexible solution

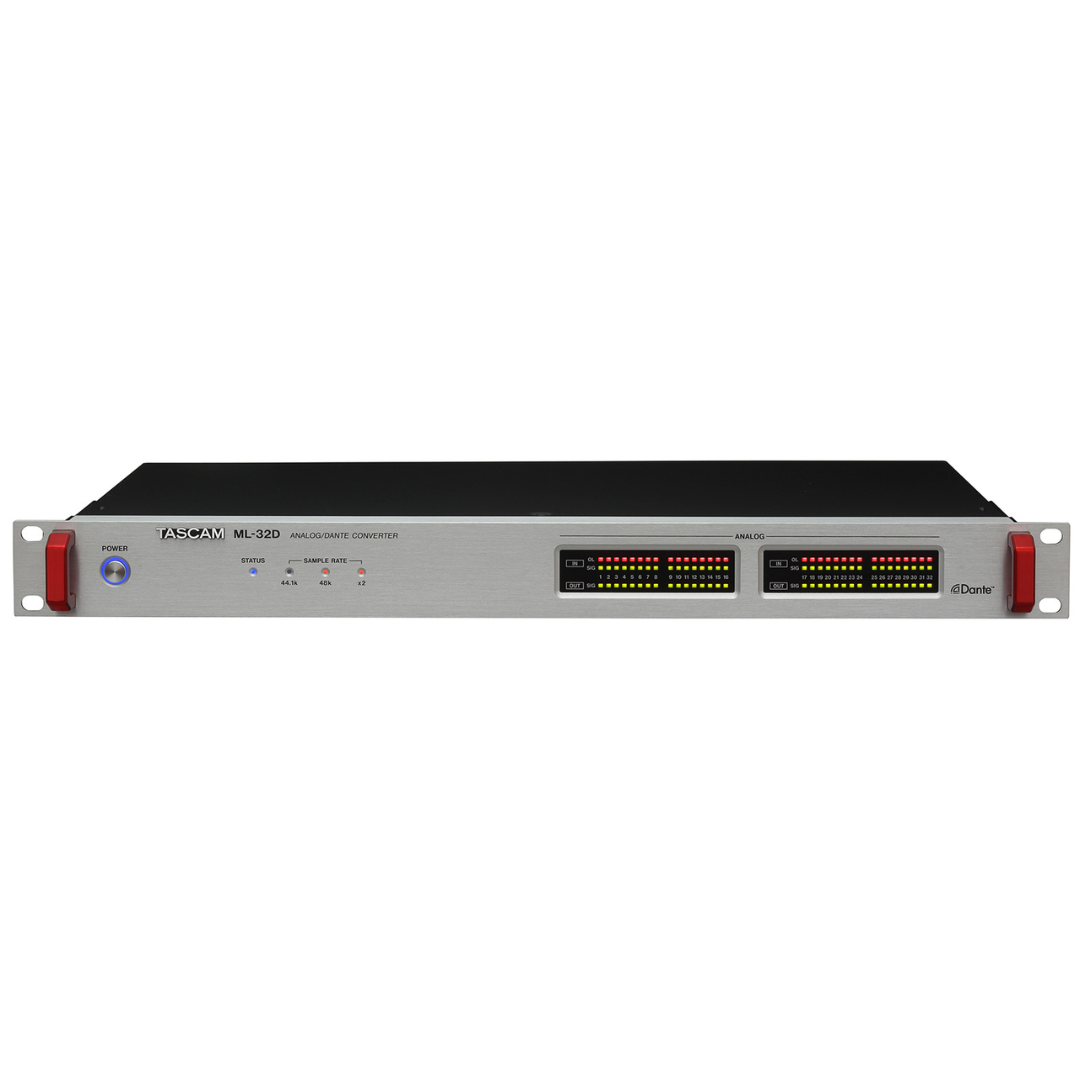

The TASCAM ML-32D is a professional Dante-focused converter made specifically to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize Sub-D format connectors.

Specs

• Power consumption : 22W
• Dimensions : 483(W)×45(H)×303.8(D)mm
• Weight : 3.5kg

Key Features

• Dante focused interface for connection of external audio into or out of a Dante audio network

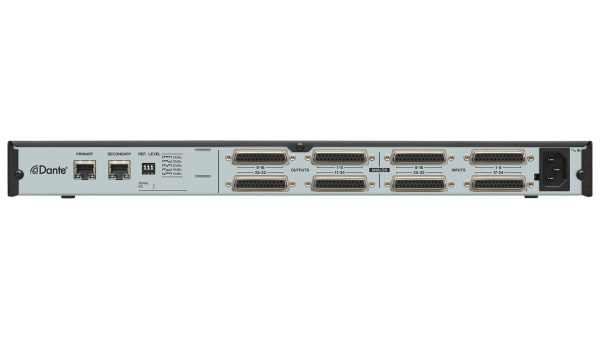

• 32 channel analog line input and 32 analog line outputs (48k/96kHz) using eight D-Sub connectors
• Dante primary and secondary connectors support redundancy
• Up to 96kHz/24-bit quality
• Equipped with a signal/overload indicator that enables level monitoring of analog input/output signals
• 1U rack mount size
