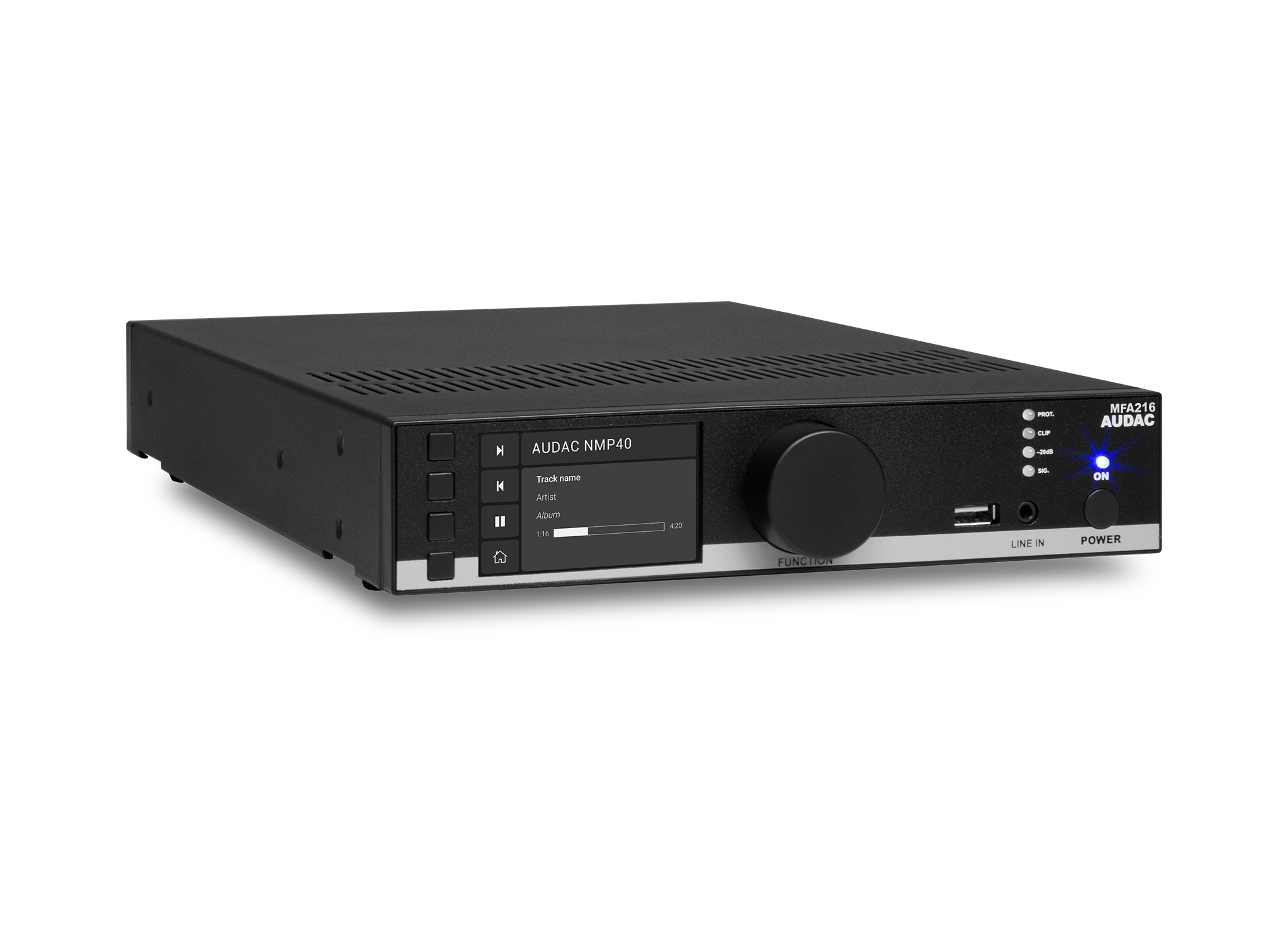

AUDAC MFA216
“All-in-one audio solution.”
This revolutionary award-winning amplifier is designed as a two-channel amplifier using class D amplifier technology. It can be used for powering low impedance stereo systems with a maximum power of 2 x 80 Watt, while bridging to a constant voltage (100V and 70V) is possible with a maximum output power of 160 Watt. A switch-mode power supply allows a wide variation of main voltages for global compatibility.

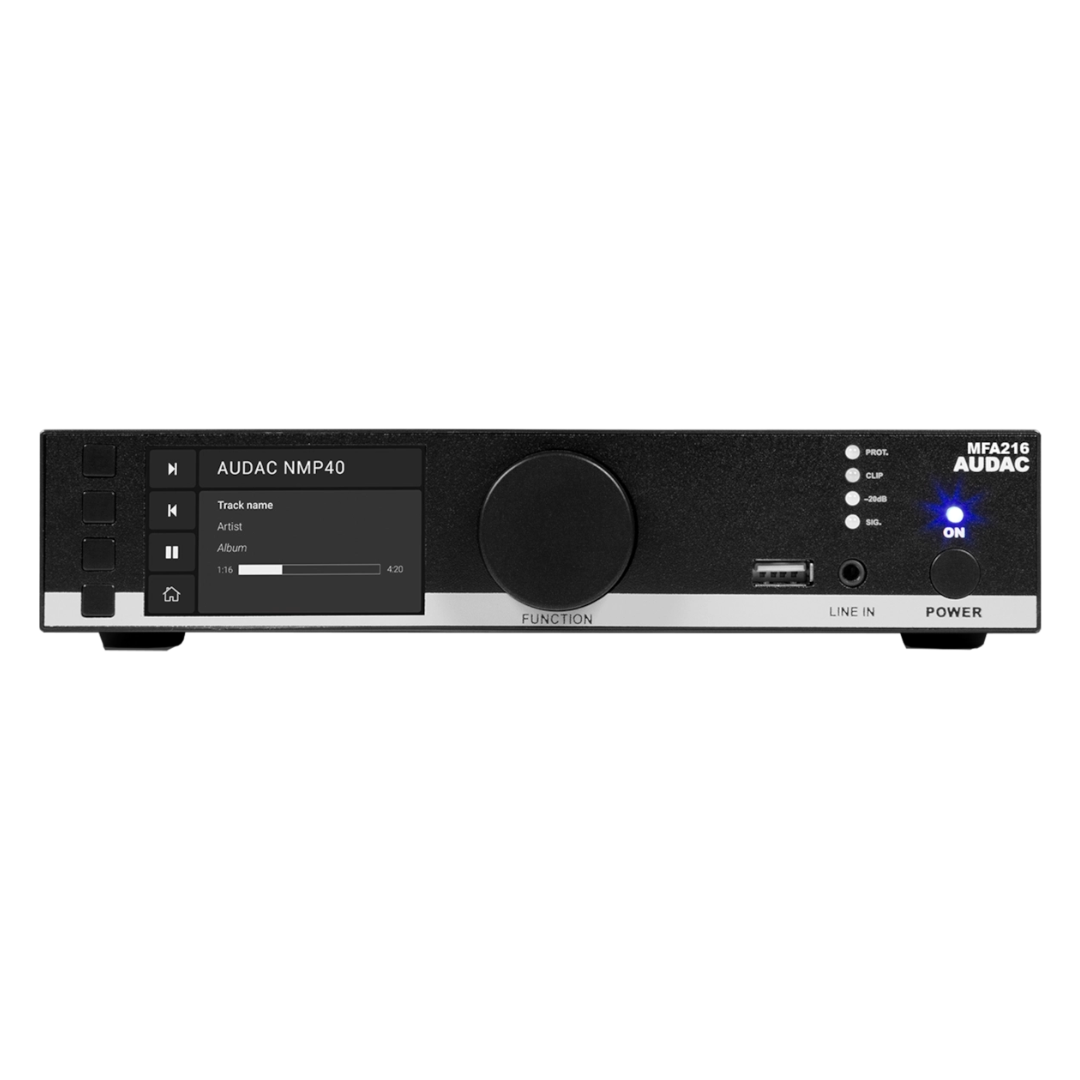

A balanced mic/line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V). A priority switch overrides the background music when enabled and compatibility with line-level sources (e.g. voice file players) is guaranteed by wide gain adjustment (0 dB ~ +50 dB). This gain adjustment controls both the sensitivity of the line inputs on the rear as on the front. Thanks to the 2.8” TFT display and the push rotary dial on its front, an unmatched user experience is achieved.
SYSTEM SPECIFICATIONS
| Continuous power (AES) | @ 4 Ω Stereo | 2 x 80 W | |
| @ 8 Ω Stereo | 2 x 80 W | ||
| @ 16 Ω Stereo | 2 x 80 W | ||
| @ 70/100 V Bridge | 1 x 160 W | ||
| Frequency | Response (± 3 dB) | 20 Hz – 20 kHz | |
| Signal / Noise | > 90 dB | ||
| THD+N (@ 1 kHz) | < 0.05% | ||
| Technology | Class-D | ||

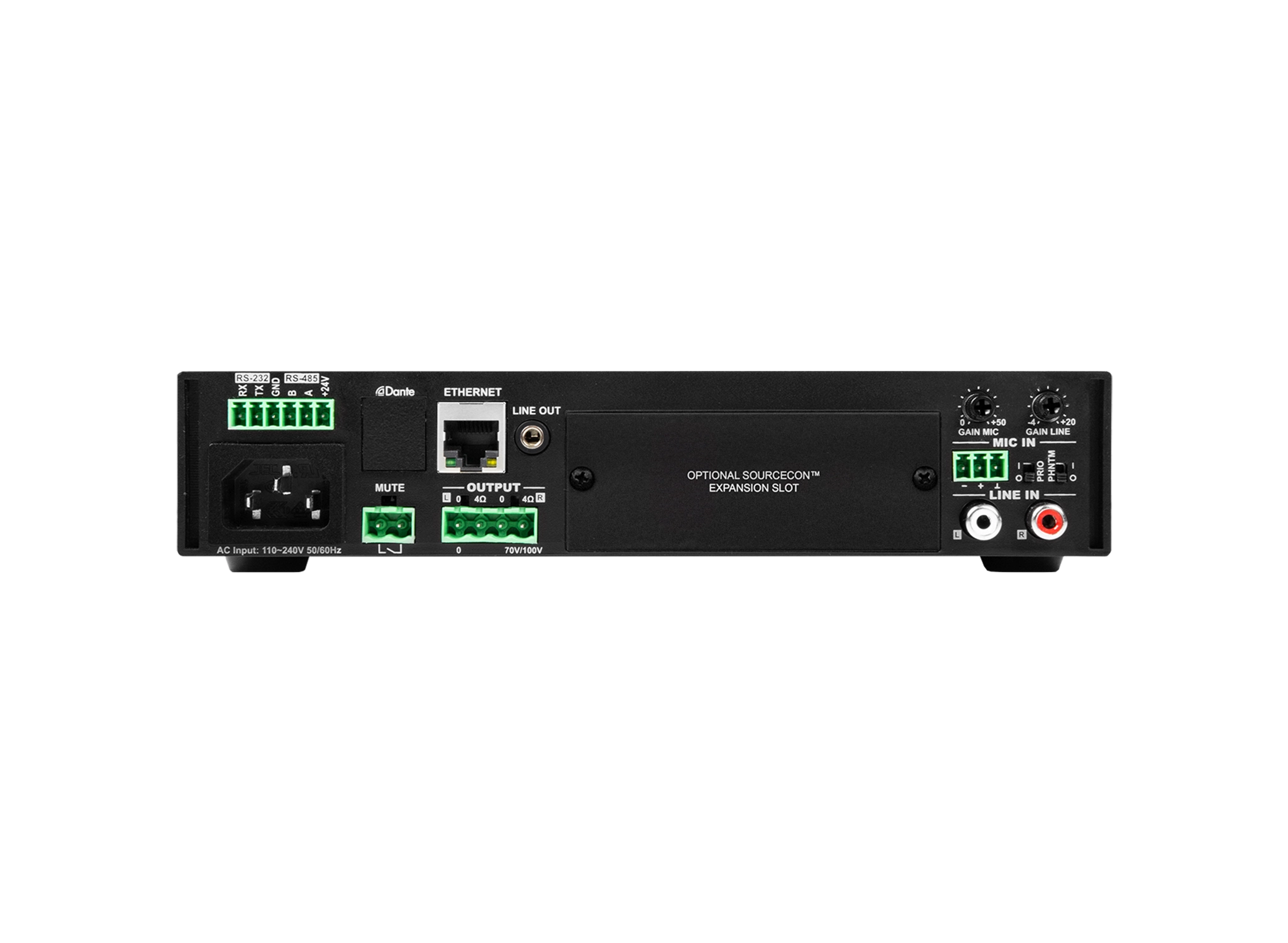

| Inputs | Balanced Mic./Line | Type | 1 x Balanced Microphone and Line Input |
| Connector | Euro Terminal Block | ||
| Unbalanced Stereo | Type | 1 x Stereo Unbalanced Line | |
| Connector | RCA / 3.5 mm Jack | ||
| Type | 1 x SourceCon™ interface card slots | ||
| 4 x Dante™/AES67 (Optional module) | |||
| Other | Type | Priority mute contact | |
| Outputs | Type | 1 x Line output | |
| 1 x 70/100V (Bridged) | |||
| 4 x Dante™/AES67 (Optional module) | |||
| Power | Supply | Operating | 100 ~ 240 V AC / 50 ~ 60 Hz |
PRODUCT FEATURE
| Dimensions | 217.5 x 43.7 x 300 mm (W x H x D) | |
| Weight | 2.20 kg | |
| Mounting | 1/2 19” / 1 HE or tabletop | |
| Construction | Steel | |
| Accessories | Optional | 19” Rackmount adapter |
| Wall Controller (MWX45) | ||
| ANI44XT – Dante™/AES67 audio network interface | ||
