LM-8ST

Description

Single rackmount mixer with 8ST input With single-microphone input, you can take this device along to live stage shows and events

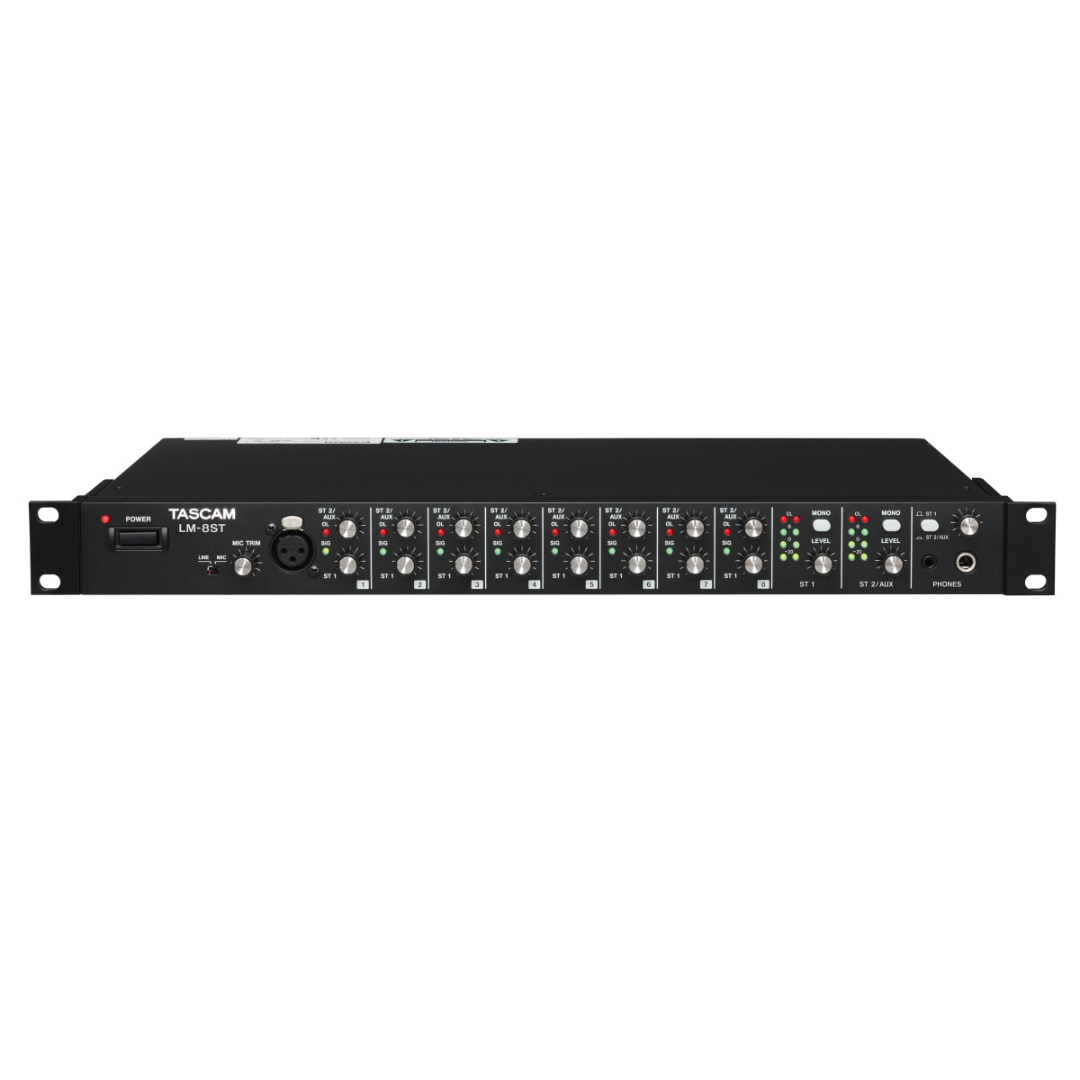

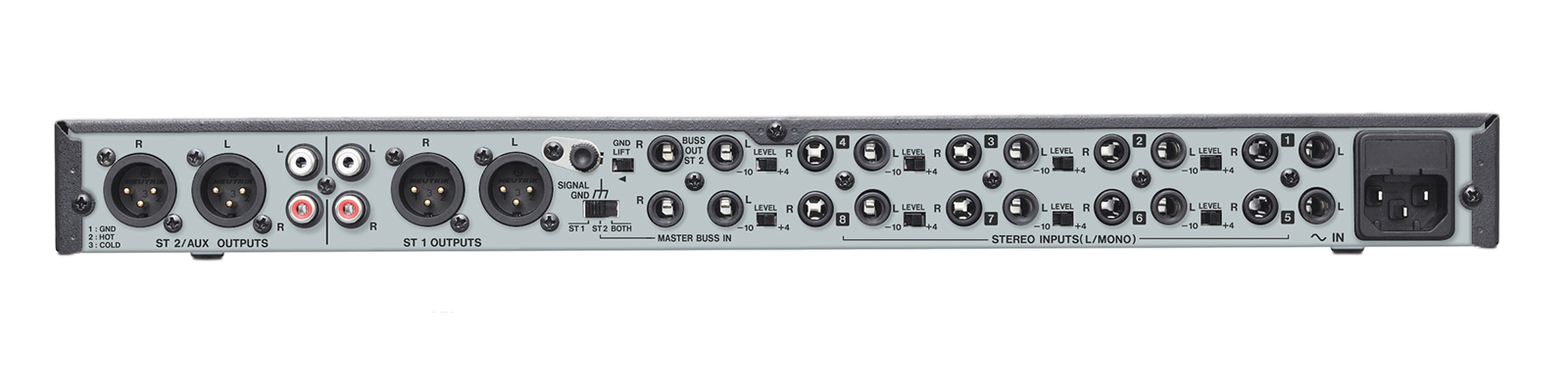

The LM-8ST is a line mixer that mixes eight stereo line inputs. In addition to the TRS balance line inputs available for each channel, an XLR balanced mic input is possible with channel-1. The LM-8ST supports a simple PA system that requires a microphone.

Specs

• Power consumption: 15W
• Dimensions (W×H×D): 482 × 44 × 280 mm

Key Features

• 8 stereo channel / 4-buss line mixer
• 8 stereo 1/4″ TRS balanced inputs with –10/+4dB switch
• Mic input with trim control on front panel
• 2-segment LED meter per channel
• 1/4″ and 1/8″ stereo headphone outputs
• XLR balanced ouptuts for ST1 and ST2/AUX
• Stereo balanced buss output/input for cascade
