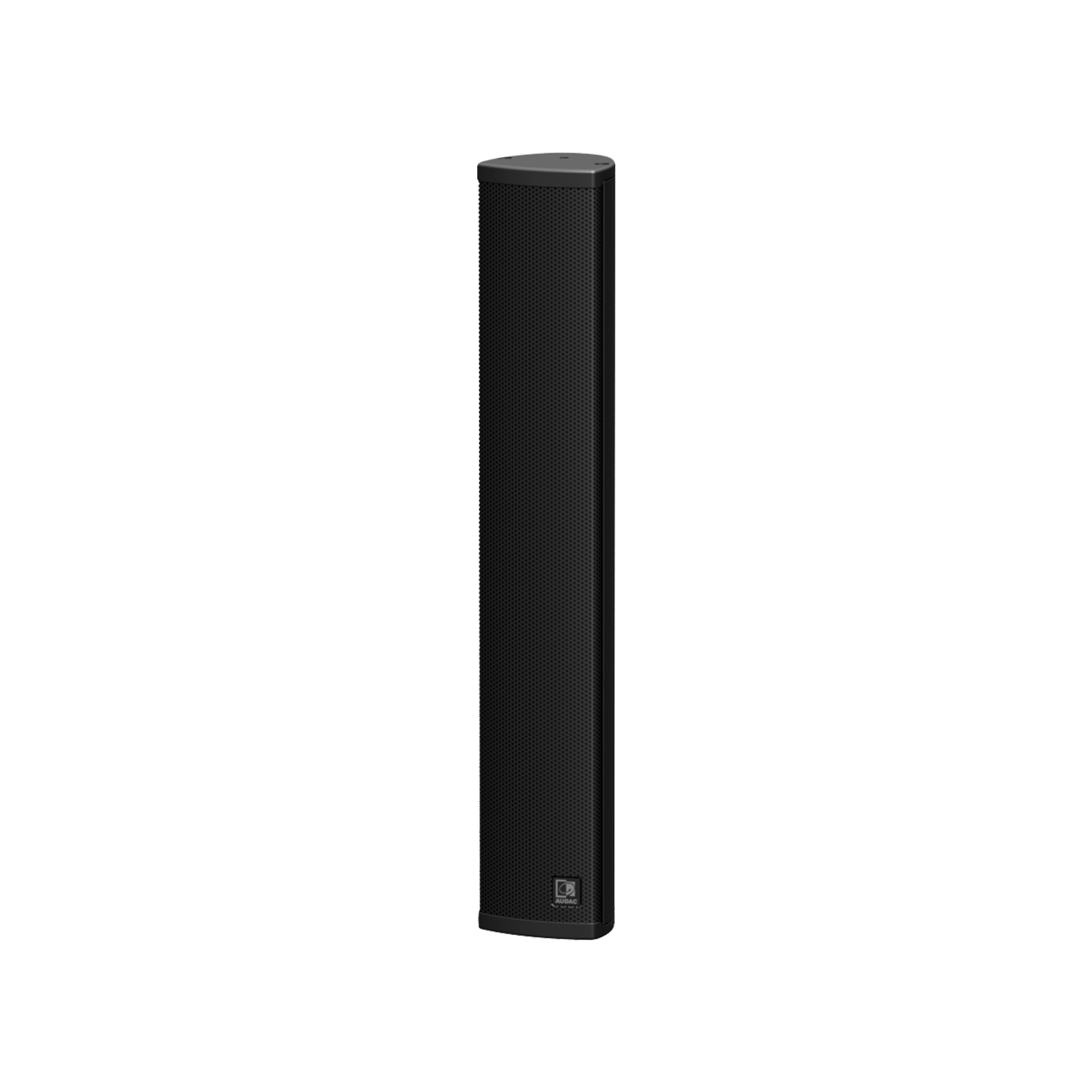

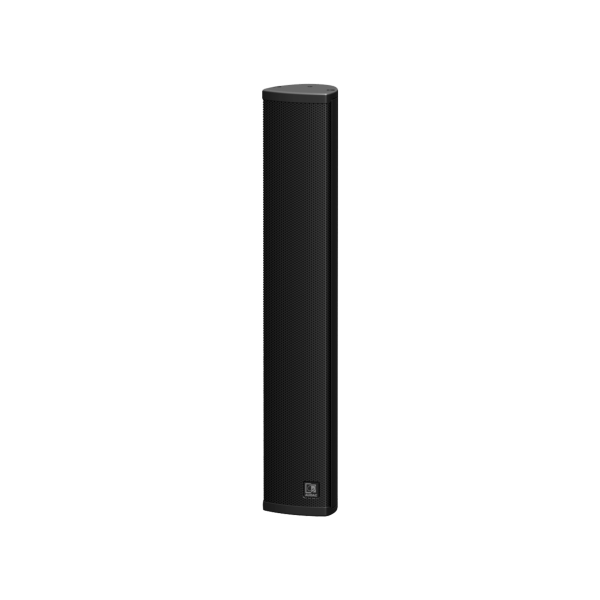

The LINO4 column speaker consists of 4 x 2” low/mid-frequency drives with a 1” central positioned tweeter for the high frequencies. It reaches a power handling of 20 Watt, while a multi-tapping line transformer allows it to be connected in 70V/100V public address systems with power taps for 20W, 10W and 5W (2.5 W for 70V use only). It offers solutions for uniform acoustic performance in any type of system in reverberant venues, while reducing echo and microphone feedback to optimizes the intelligibility of music & speech.

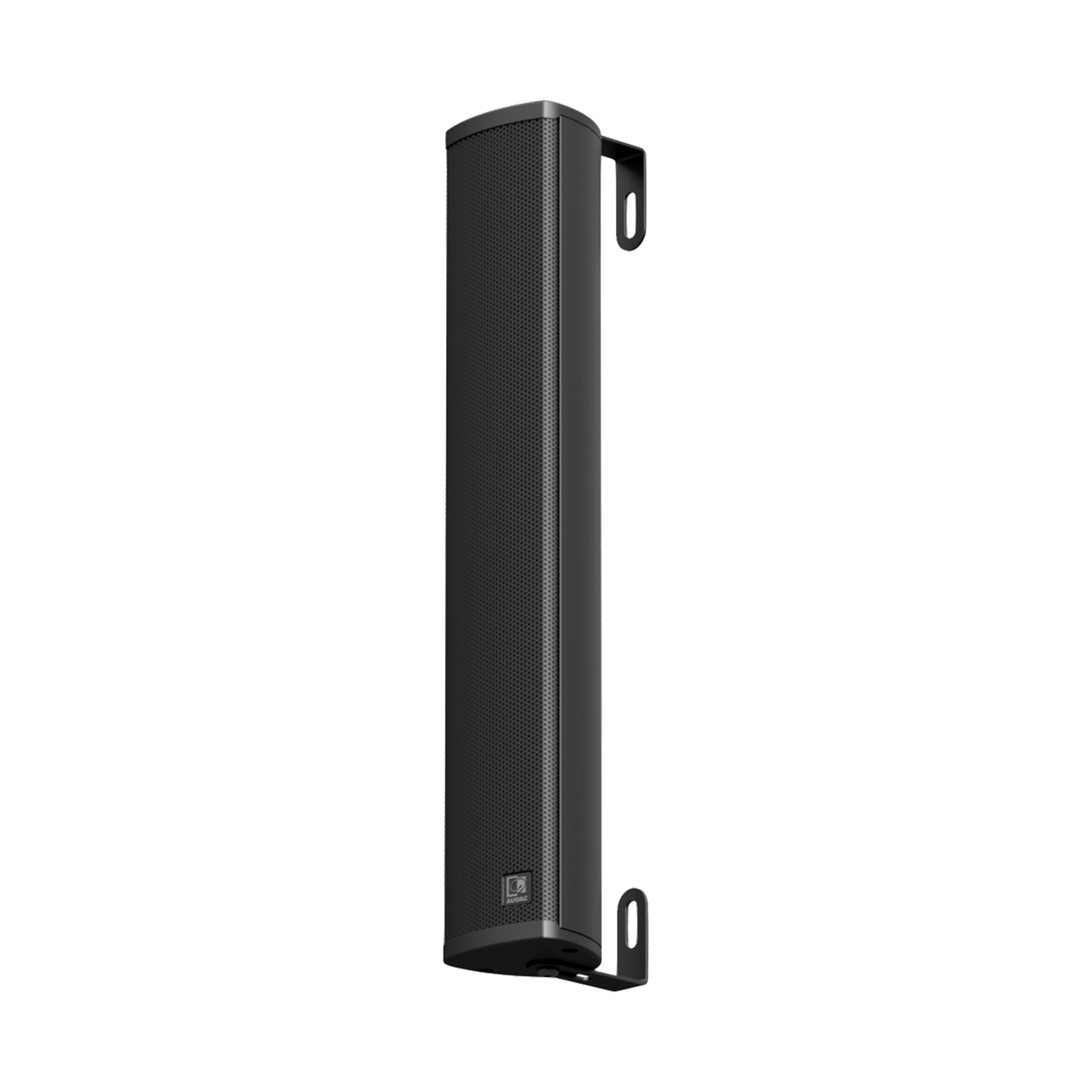

Mounting is done through an L-shaped bracket on top and bottom, offering optimal flexibility for fixation and directional placement. The distance from the speaker to the wall is 10mm, while it can be vertically inclined 4°. Connections are made through multi-tapping terminal block connector and A multi-tapping line transformer allows them to be connected to 70/100V public address systems with various power tapping settings, while connections in low impedance systems are also possible.
SYSTEM SPECIFICATIONS
| Speaker type | Column speaker | |
| Peak power handling | 80 W | |
| Program power handling | 40 W | |
| Continuous power (AES) | 20 W | |
| Impedance | 8 Ω | |
| Sensitivity (1W/1m) | 88 dB | |
| Sound Pressure (Max. W/1m) | 101 dB | |
| Frequency | Range (-10 dB) | 120 Hz – 20 kHz |
| Response (± 3 dB) | 170 Hz – 15 kHz | |
| Line Transformer Tappings | 1 | 250 Ω – 100 V / Not used – 70 V / 20 W |
| 2 | 500 Ω – 100 V / 20 W – 70 V / 10 W | |
| 3 | 1000 Ω – 100 V / 10 W – 70 V / 5 W | |
| 4 | 2000 Ω – 100 V / 5 W – 70 V / 2.5 W | |
| Drivers | 4 x 2” | |
| HF | 1” | |
| Connectors | 6-pin Euro Terminal Block | |
| Temperature | Operating | -20 – 50 °C |
| Dispersion | Horizontal | 160° (-6 dB avg 1 kHz – 4 kHz) |
| Vertical | 33° (-6 dB avg 1 kHz – 4 kHz) | |
PRODUCT FEATURES
| Colours | Black & White | |
| Construction | Aluminum | |
| Front finish | Aluminium grill | |
| Dimensions | 72 x 414 x 68.3 mm (W x H x D) | |
| Weight | 1.81 kg | |
| Accessories | Included | 1 x 6-pin Euro Terminal Block Input connectors |
| Mounting bracket | ||

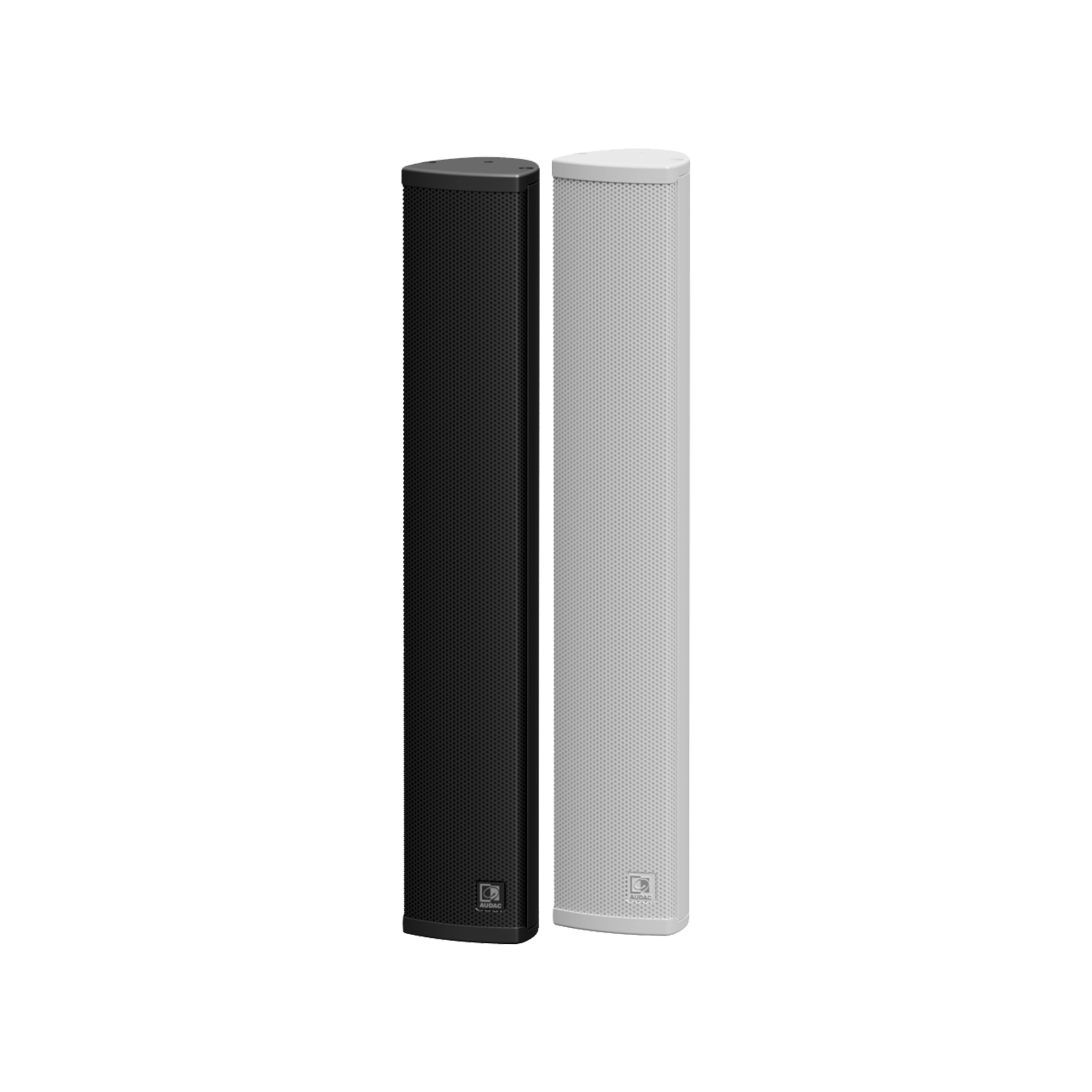

VARIANTS
- LINO4/B – Black Version
- LINO4/W – White Version
