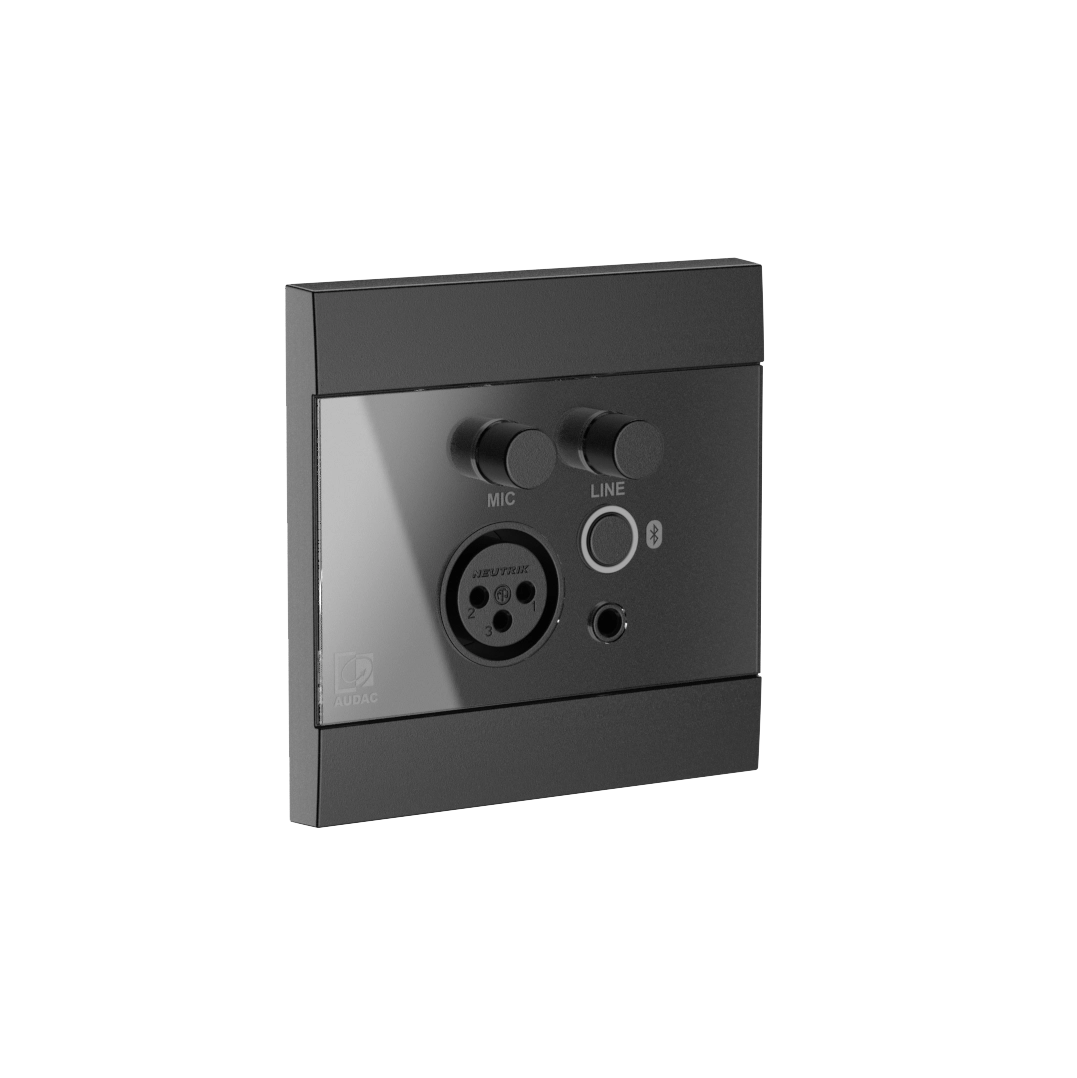

The WP225 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, … ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.
It also features a Bluetooth receiver and pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc…

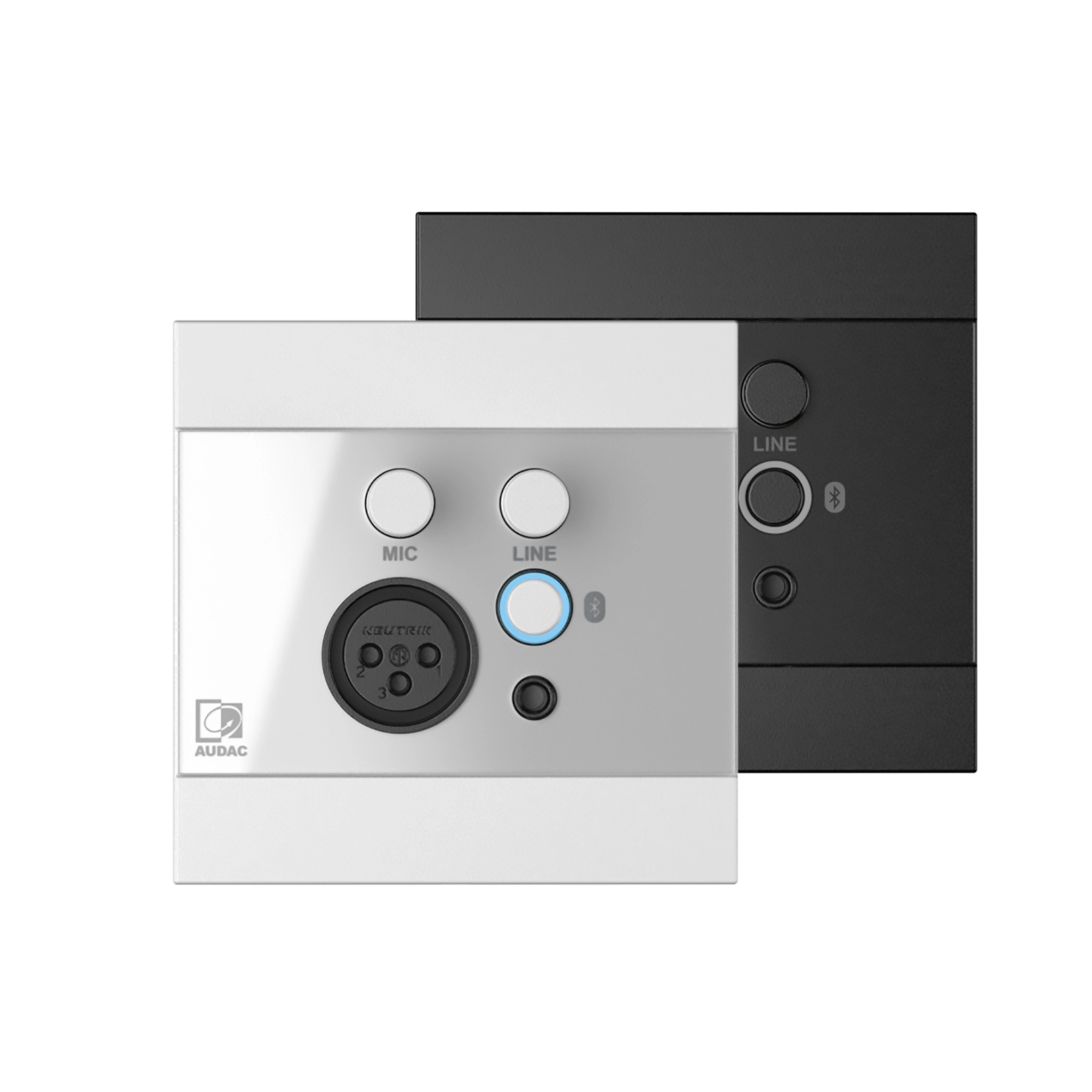

The WP225 is available in 2 colours (White – RAL9003 & Black – RAL9005) and is compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.
Please note:
These in-output wall panels are designed for fixed installation applications and are not suitable for use with DJ mixing panel setups. They are intended for balanced audio connections and general-purpose signal distribution, not for high-level, dynamic signal processing typically required in DJ environments.
SYSTEM SPECIFICATIONS
| Outputs | Level | +12 dB | |
| 0 dB | |||
| Inputs | Wall Panel | Type | 3.5 mm jack stereo line input connection |
| XLR microphone input connection | |||

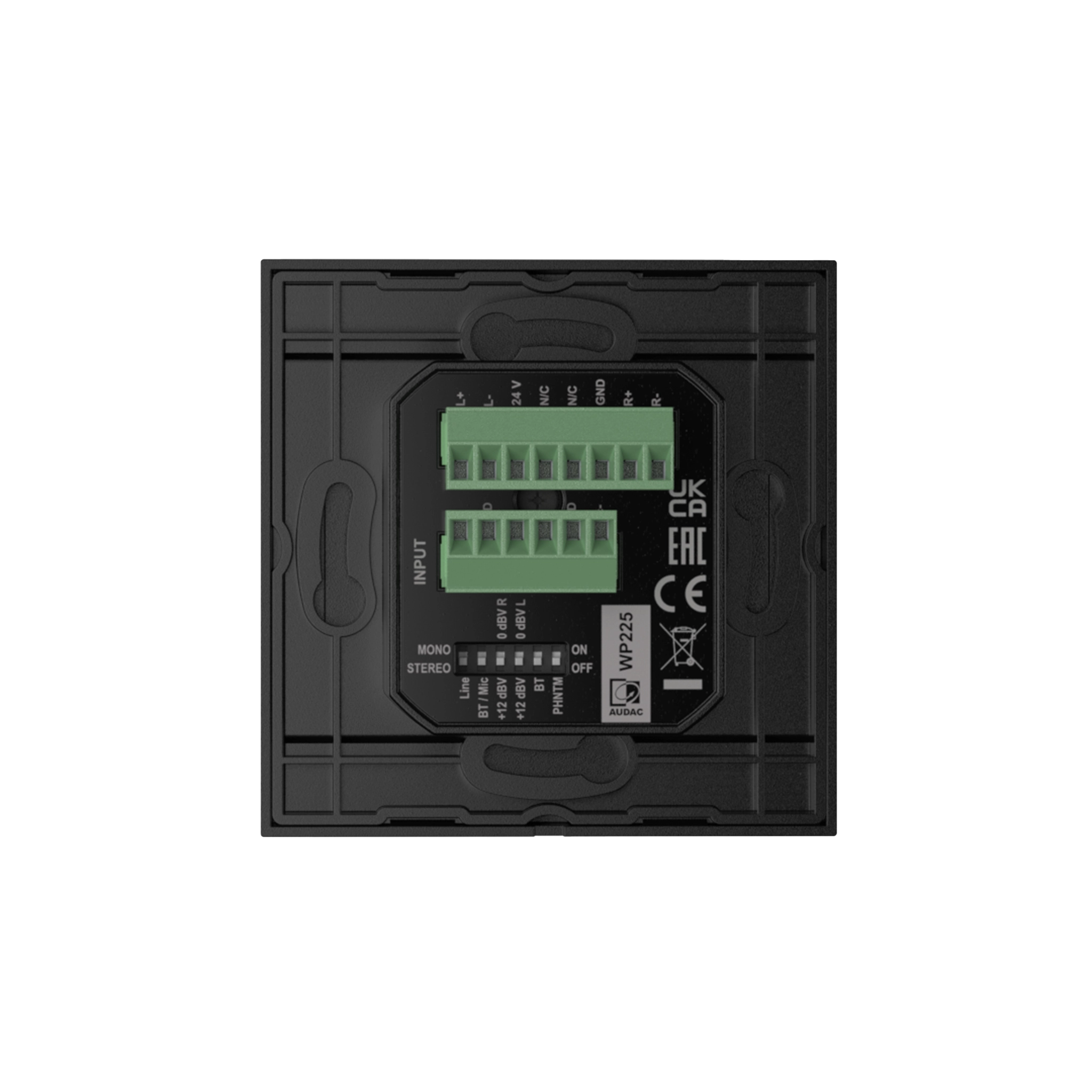

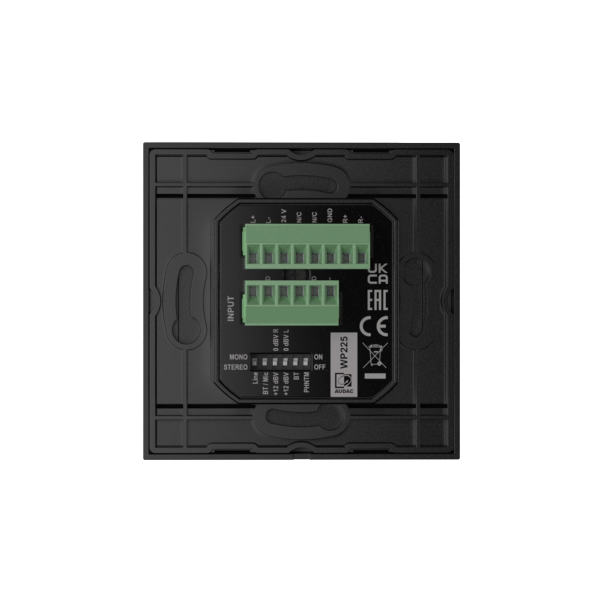

| Mic & Line inputs on rear for permanent connections | |||
| Bluetooth receiver (Version 5.0) | |||
| Control | Individual input level control for Mic & Line | ||
| Bluetooth pairing button with LED | |||
| Phantom power (DIP switch on rear) | |||
| Low-cut (Mic) enable / disable (DIP switch on rear) | |||
| Output level +12 dBV enable / disable (DIP switch on rear) | |||
| Bluetooth enable / disable (DIP switch on rear) | |||
| Mono / Stereo (DIP switch on rear) | |||
| Connection | 3.5 mm jack input (Stereo line input) | ||
| Female XLR input connector (Microphone input) | |||
| 6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs) | |||
| 8-pin terminal block (3.81 mm pitch) output connection | |||
PRODUCT FEATURE
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) | ||
| Colours | Black (RAL9005) (WP225/B) | ||
| White (RAL9003) (WP225/W) | |||
| Front finish | Elegant ABS front panel with glass | ||
| Accessories | Optional | Surface mount Installation boxes | WB200 – Surface mount wall box for WP & NWP series |
| Flush mount Installation boxes | Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45SI/FS | ||
| Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG | |||
| Installation standard | Compatible with EU installation materials | ||
| 1-gang US standard (WP225) | |||
VARIANTS
- WP225/B – Black version
- WP225/W – White version
