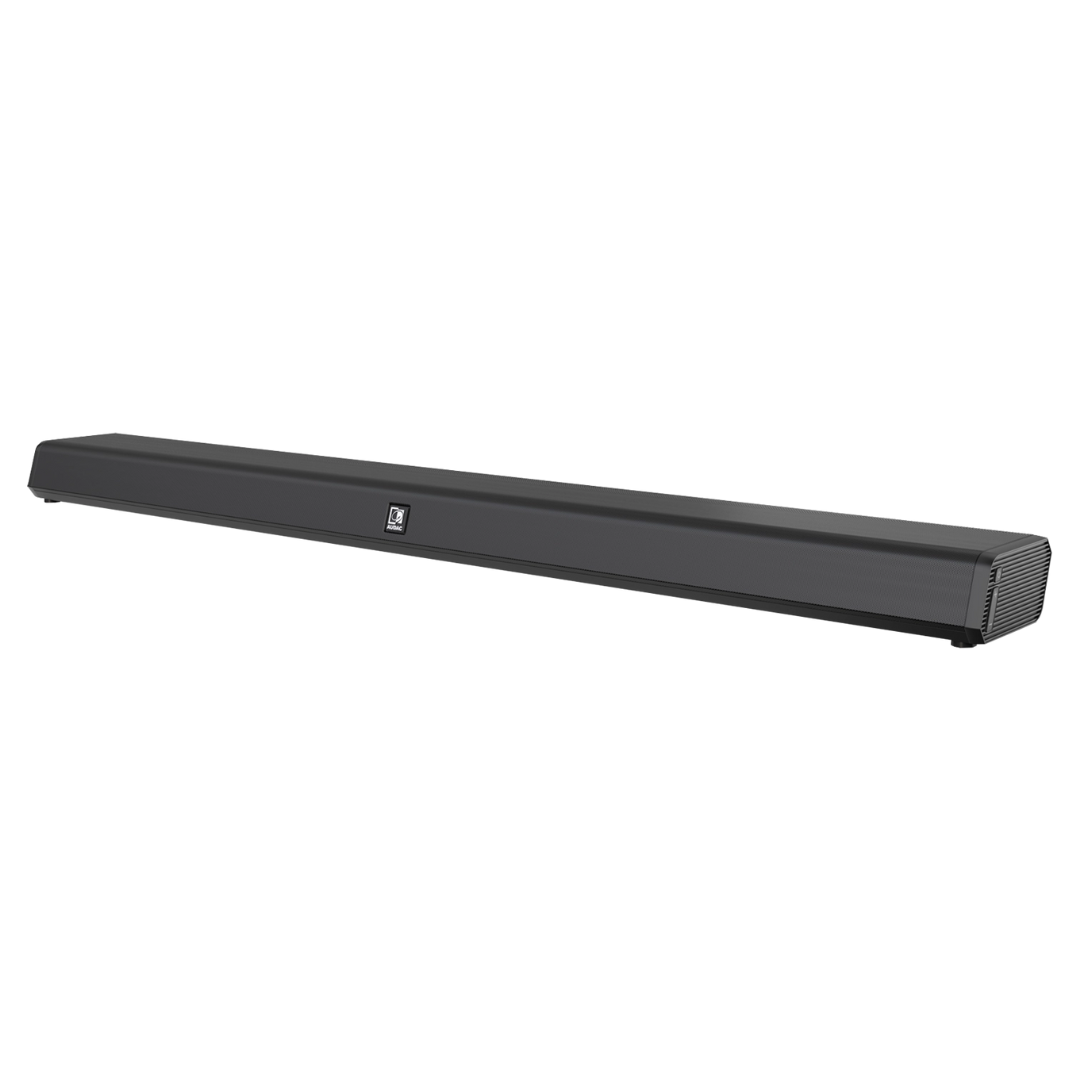

The IMEO2 Soundbar features a slim and elegant design and includes all required functions for expansion of any audiovisual system with an impressive sound, while having a minimal hassle for installation. It’s perfectly suited for installations such as classrooms, presentation rooms or meeting rooms where it can be used and installed in combination with screens,smartboards or projectors.

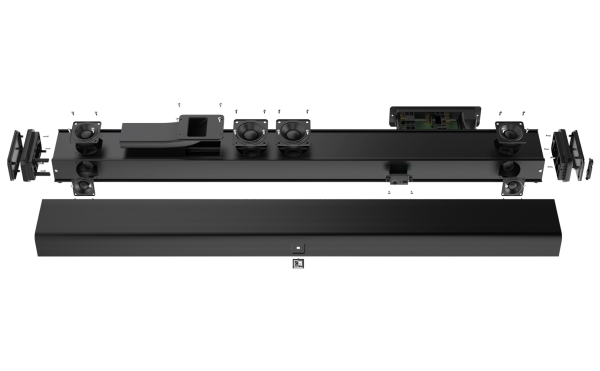

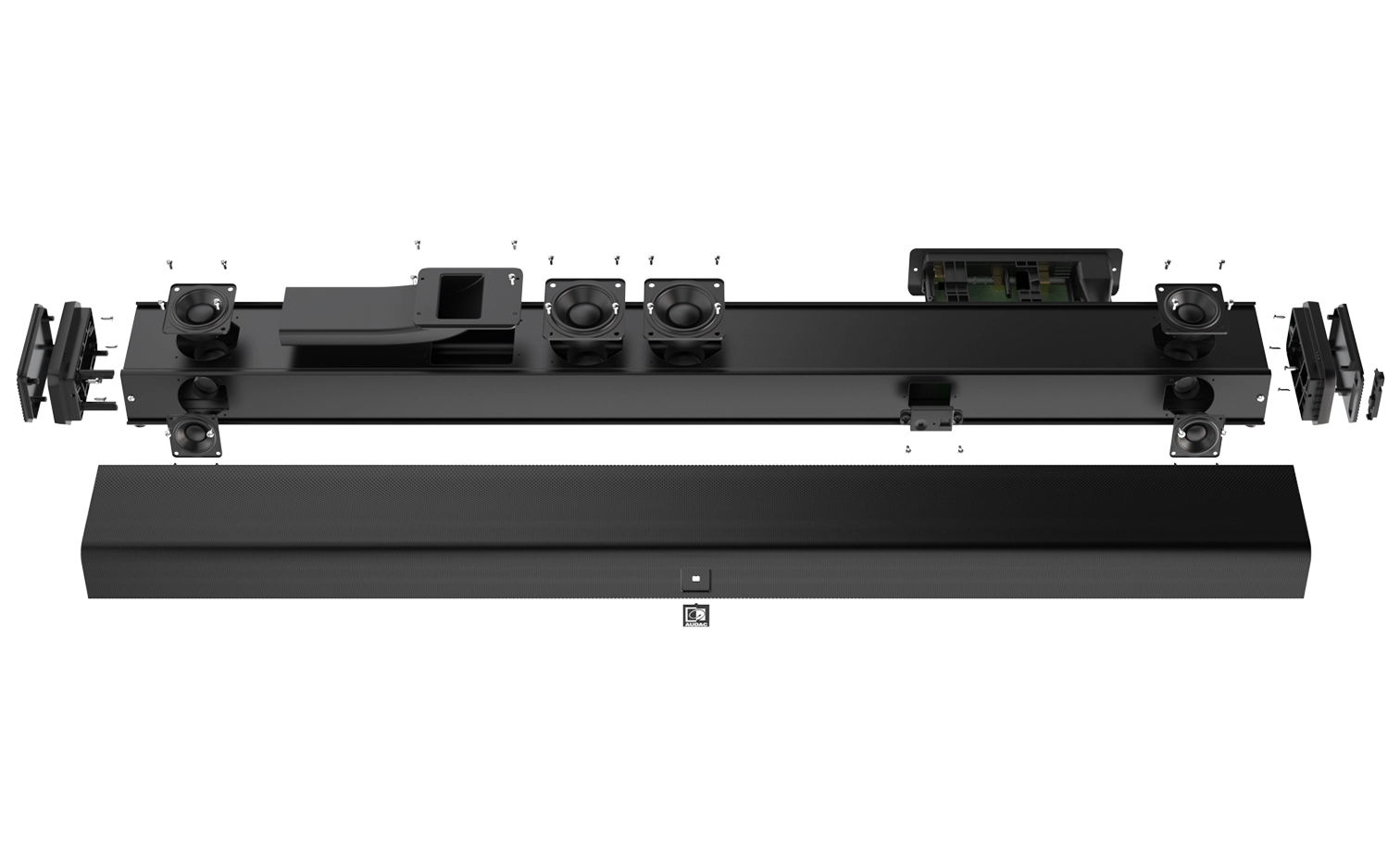

The acoustics originate from a 3-way speaker construction, composed of two 1.5” high frequency drivers, two 2″ mid frequency drivers and a low frequency section with two 2.5” low frequency drivers with an RMS rating. The power handling reaches an overall level of 60 Watt RMS. The Class-D amplifier with integrated WaveSelect DSP processing and transmission line configuration for the low-frequency drivers offers a crystalclear sound reproduction with stunning low-frequency response. Selectable DSP presets offer optimization for applications such as presentations, music playback or video’s.
SYSTEM SPECIFICATIONS
| Outputs | Power | 2 x 15 W | |
| 1 x 30 W | |||
| Sound Pressure (Max. W/1m) | 90 dB | ||
| Frequency | Response (± 3 dB) | 40 Hz – 20 kHz | |
| THD+N (@ 1 kHz) | 1% | ||
| Bluetooth specification | V4.2 | ||
| Class 2 output power | |||
| Drivers | HF | 2 x 1.5” | |
| MF | 2 x 2” | ||
| LF | 2 x 2.5” | ||
| Power | Consumption | 30 W | |
| Source | 100 ~ 240 V AC / 50 ~ 60 Hz | ||
| Consumption | Standby | 0.5 W | |
| Inputs | Connector | 3.5 mm Jack (Unbalanced) | |
| Coaxial SP/DIF digital input | |||
| HDMI ARC | |||
| USB Playback (MP3, FLAC, WAV) | |||
| Optical & coaxial inputs (SPDIF) | |||
| Control | Remote control (IR) | ||
| Selection / volume switches (side panel) | |||
| Energy certification | Energy Star 3.0 | ||
PRODUCT FEATURES
| Weight | 4.24 kg | |
| Dimensions | 1000 x 60.8 x 111.3 mm (W x H x D) (Excl.bracket) | |
| 1000 x 60.8 x 134.8 mm (W x H x D) (Incl.bracket) | ||
| Colours | Black | |
| Mounting & handling | Mounting wall bracket | |
| Front finish | Steel grill | |
| Construction | ABS | |
| Accessories | Included | Power cable |
| Wall mounting bracket | ||
| Remote control (IR) | ||
| 3.5 mm jack audio cable (1 meter) | ||
| 3.5 mm jack audio pigtail (0.15 meter) | ||
| 90° HDMI angle adapter | ||
VARIANTS
- IMEO2/B – Black
