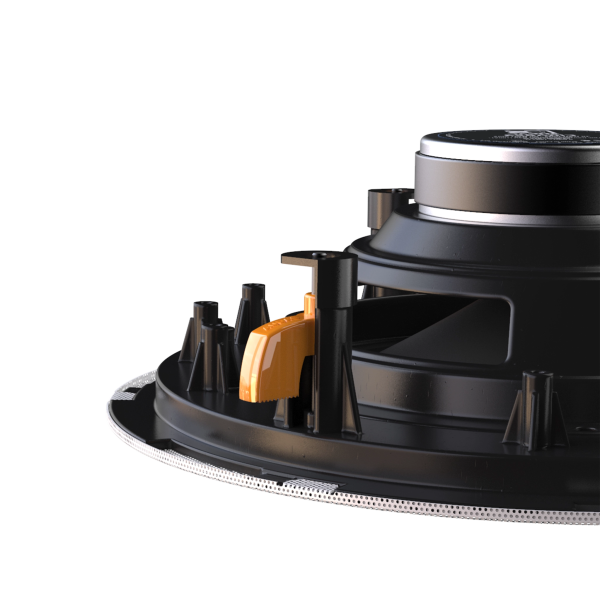

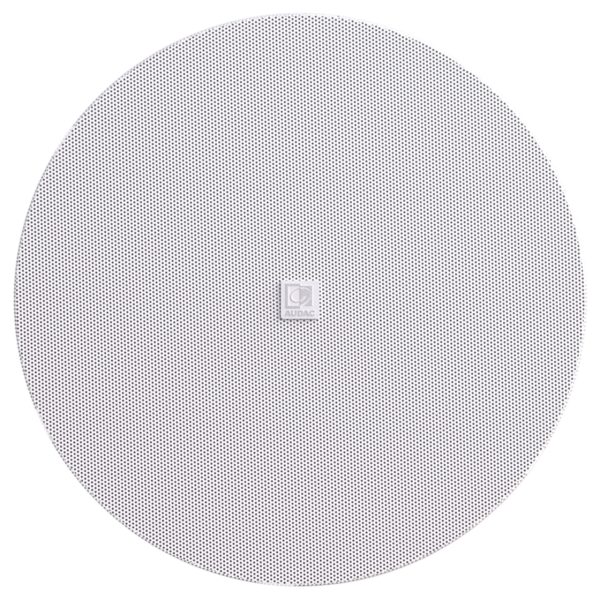

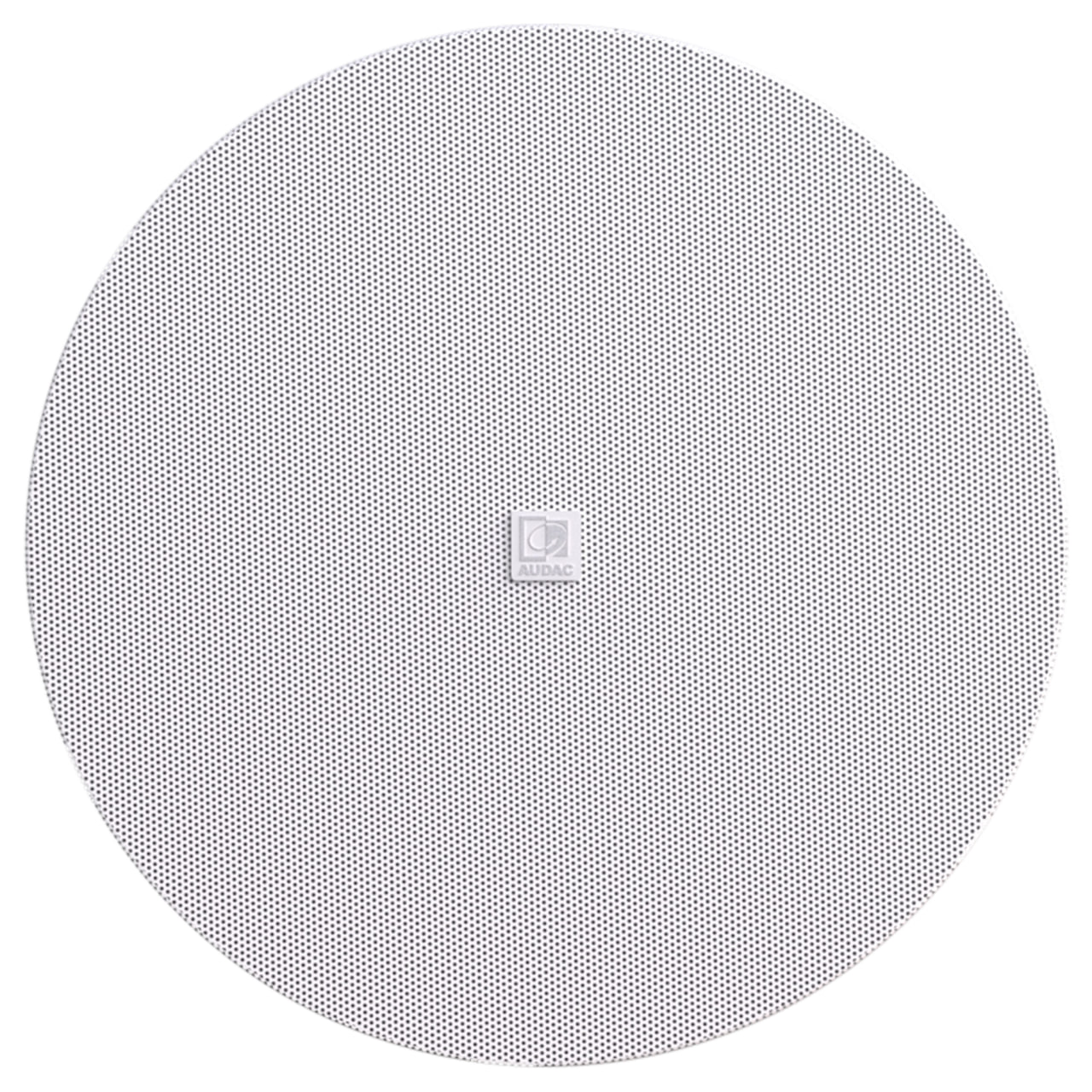

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA8 features a 8” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 40 Watt (RMS) and maximum power handling of 80 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm & 16 Ohm bypass connection.
SYSTEM SPECIFICATIONS
| Peak power handling | 160 W | |
| Program power handling | 80 W | |
| Continuous power (AES) | 40 W | |
| Sound Pressure (Max. W/1m) | @ 100 V | 105 dB |
| Sensitivity (1W/1m) | 89 dB | |
| Frequency | Response (± 3 dB) | 40 Hz – 20 kHz |
| Speaker type | 2-way coaxial | |
| Impedance | 8 Ω (CIRA824) | |
| 16 Ω (CIRA840D) | ||
| Frequency | Range (-10 dB) | 33 Hz – 20 kHz |
| Dispersion | Conical | 140° |
| Connectors | Multi-tap Fast-con™ connections | |
| Drivers | HF | 1” |
| LF | 8” | |
| Line Transformer Tappings | 1 | 24 W – 417 Ω (CIRA824) |
| 2 | 12 W – 833 Ω (CIRA824) | |
| 3 | 6 W – 1667 Ω (CIRA824) | |
PRODUCT FEATURES
| Cut-out measurement | 243 mm (Ø) |
| Dimensions | 270 x 82 mm (Ø x D) |
| Weight | 1.65 kg (CIRA840D) |
| 1.75 kg (CIRA824) | |
| Operating temperature | -20 °C ~ 60 °C |
| Construction | ABS |
| Front finish | Twist-Fix™ borderless finely perforated steel grill |
| Built-in depth | 82 mm |
| Mounting | QuickFit™ mounting system |
| Colours | White (RAL9003) (CIRA824/W & CIRA840D/W) |
VARIANTS
- CIRA824I/W – White version, 8Ω & 24 Watt @ 100V
- CIRA840DI/W – White version, 16 Ω
