CG-1800

MASTER CLOCK MULTI-OUTPUT PRECISION GENERATOR

The CG-1800 master clock generator generates NTSC, PAL and HD Tri-level video clock – as well as word clock through BNC, AES/EBU and S/PDIF outputs – ensuring compatibility with any synchronization system

SPECIFICATIONS

  • Internal oscillator performance TYPE: OCXO
  • Power consumption: 11.5W
  • Dimensions (W×H×D): 483 × 45 × 310 mm
  • Weight: 7.1 lbs. / 3.2 kg

KEY FEATURES

  • Internal clock uses a high-precision OCXO (oven-controlled crystal oscillator) that is not influenced by the temperature of the environment
  • External input connector that supports 10MHz, allowing creation of systems with even higher precision
  • Jitter management circuit provides stable clock
  • Glitch-free relocking circuit prevents noise and skipping during clock dropouts and recovery

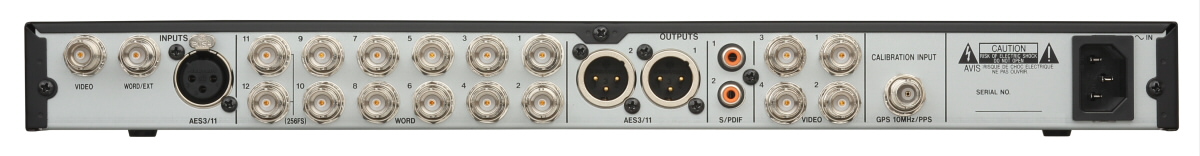

  • Numerous output connectors, including (12) word clock outputs, enabling the use in large-scale video/audio synchronization systems
  • Supports input and output of a variety of video signal formats, including NTSC, PAL and HD Tri-level
  • AES3 and AES11 signals can also be used for external master clock input sources
  • Up to (4) system settings can be saved to buttons for recall, and saved settings can be imported and exported via USB
