BO-32DE

32-Channel Euroblock to D-Sub Input Adaptor for Professional Installations

The TASCAM BO-32DE is a rugged, rack mounted audio adaptor designed for professional installation. 32 front-panel Euroblock connectors are internally bridged to four D-Sub output connectors on the rear panel, providing fast and easy I/O and interconnectivity between CD players, Digital Audio players, Mic Preamps, Zone Mixers, Distribution Amplifiers Audio over IP Convertors and more.

SPECIFICATIONS

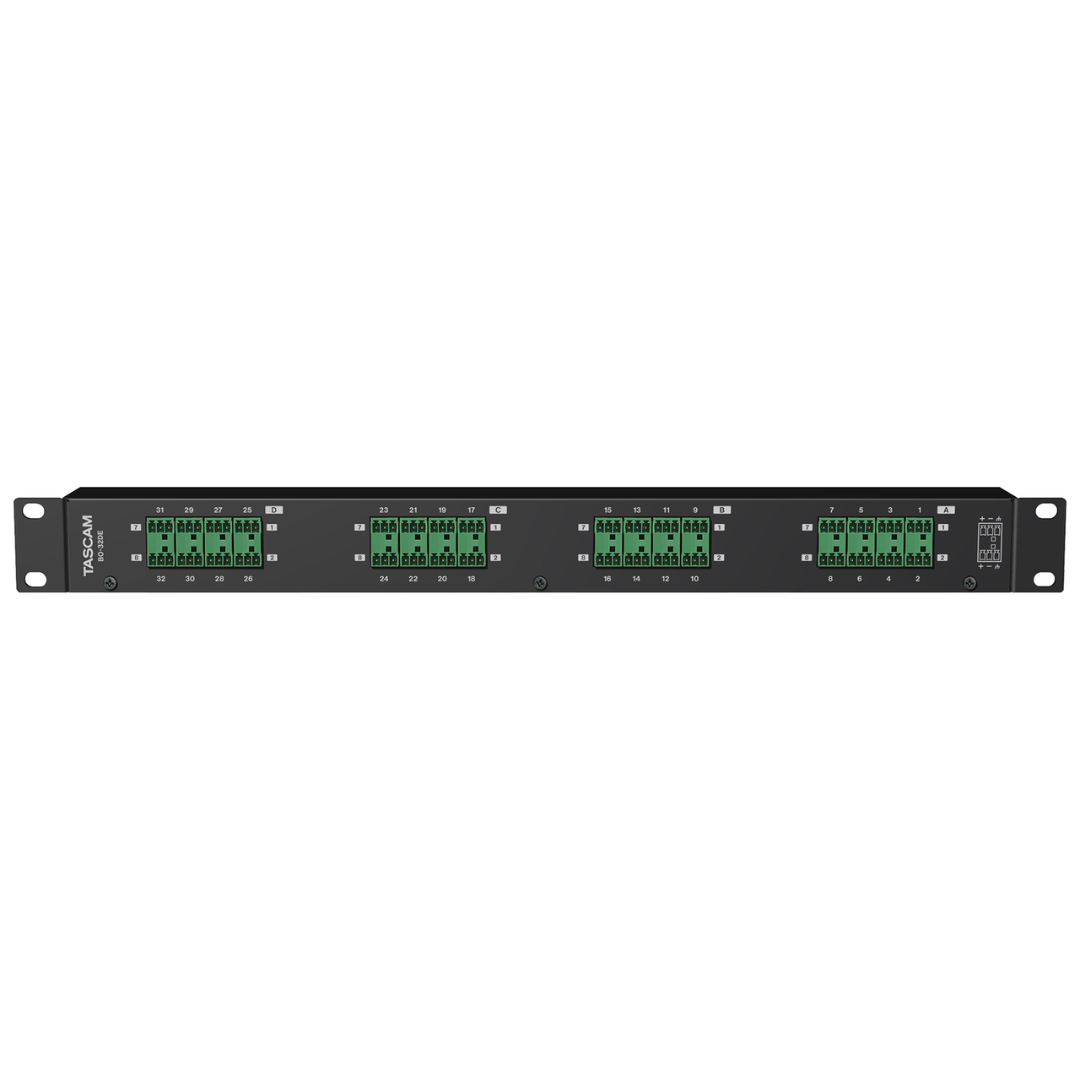

• FRONT Connectors : Euroblock × 16 (Balanced, 32ch, 3.81mm pitch)

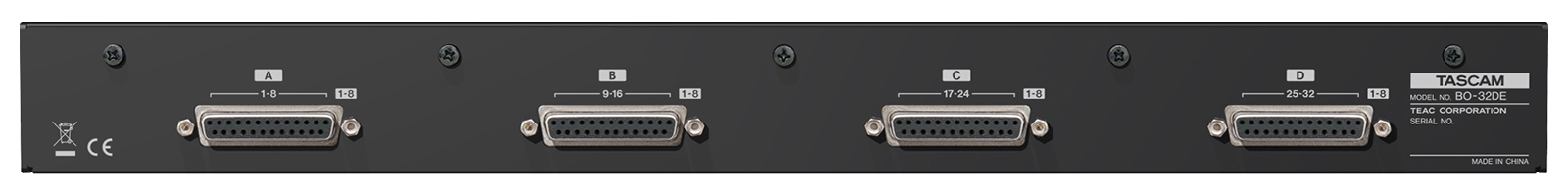

• REAR Connectors : D-sub 25pin female × 4
• REAR Attachment screws : No.4-40 UNC × 8 (inch-type)
• Dimensions : 19.0″ × 1.7″ × 2.0″ / 482.6 × 44.1 × 50.8 mm
• Weight : 1.99 lbs. / 0.9 kg
