BO-16DX/IN

Description

The TASCAM BO-16DX/IN is a rugged, rackmounted audio adaptor designed for professional installation and live sound applications. 16 front-panel XLR Inputs are internally bridged to dual D-Sub output connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more

Specs

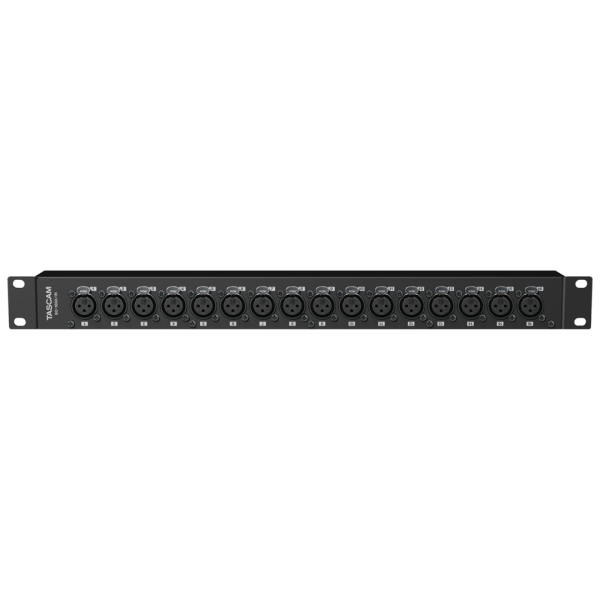

• FRONT Connectors : XLR 3-31 × 16(1: GND, 2: HOT, 3: COLD)

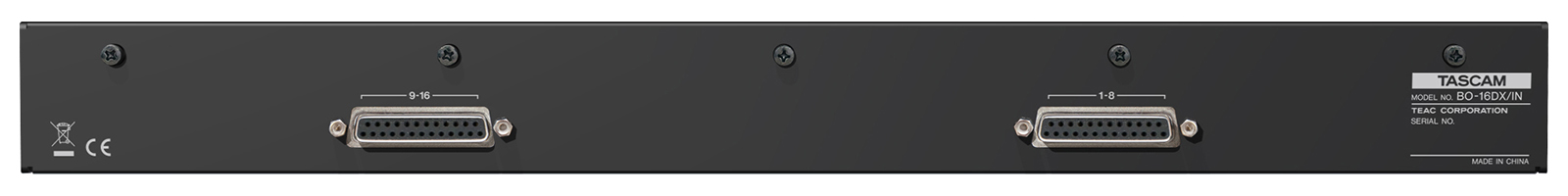

• REAR Connectors : D-sub 25pin female × 2
• REAR Attachment screws : No.4-40 UNC × 4 (inch-type)
• Dimensions : 19.0″ × 1.7″ × 2.1″ / 482.6 × 44.1 × 54.5 mm
• Weight : 1.99 lbs. / 0.9 kg

Key Features

• 16 XLR input connectors on the front panel
• Dual D-Sub output connectors compliant with AES59-2012 on the rear panel
• Multiple rackmounting options
• Short unit depth allows free layout in the rack
• 1U Rackmount size
