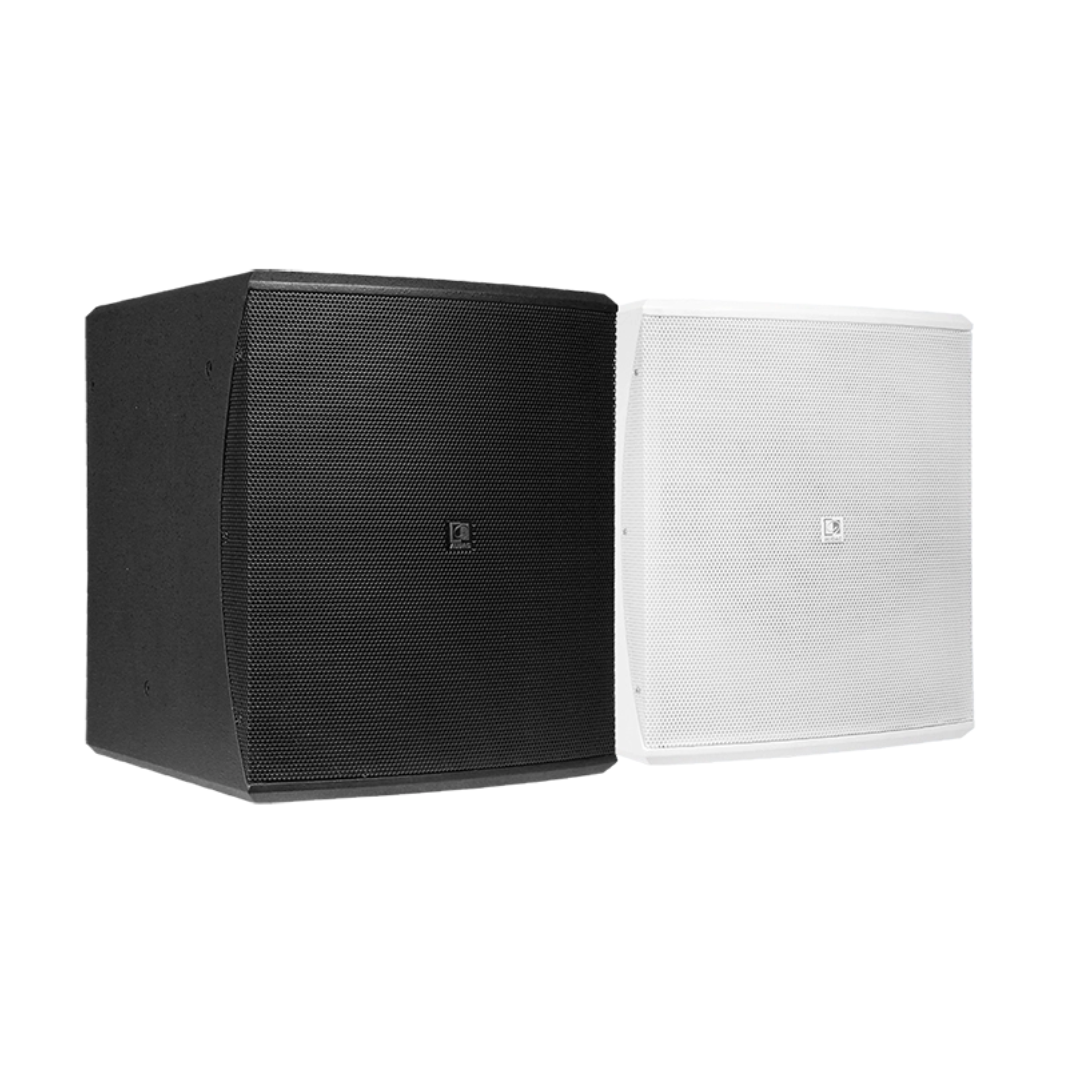

The BASO cabinets are universally useable passive bass cabinets. Their bass reflex design is engineered to be as compact as possible while giving the maximum performance in terms of sound quality and pressure. Their enclosures are crafted out of sturdy high-quality plywood while their elegant design enables them to be placed in any environment. The BASO12 is loaded with a 12” high-performance woofer with an RMS power rating of 500 Watt and maximum power of 1000 Watt. The strength of this loudspeaker originates from a 4” voice coil which is allowed to extra long excursions. Displacements are precisely controlled by the dual low-loss suspension resulting in a superior linear behaviour.
SYSTEM SPECIFICATIONS
| Speaker type | 12” Bass reflex cabinet | |
| Peak power handling | 2000 W | |
| Program power handling | 1000 W | |
| Continuous power (AES) | 500 W | |
| Impedance | 8 Ω | |
| Sound Pressure (Max. W/1m) | 125 dB | |
| Sensitivity (1W/1m) | 98 dB | |
| Frequency | Response (± 3 dB) | 40 Hz – 300 Hz |
| Range (-10 dB) | 35 Hz – 600 Hz | |
| Bass reflex tuning frequency | 45 Hz | |
| Connectors | 2 x Speakon compatible connector in recessed connector dish (linkthrough) | |
| Drivers | 12” Ferrite with low-loss suspension and 1.5” 4-layer wounded voice coil | |
PRODUCT FEATURES
| Dimensions | 380 x 449 x 460 mm (W x H x D) | |
| Weight | 22 kg | |
| Operating temperature | -20 °C ~ 60 °C | |
| Construction | 18 mm plywood with structured coating | |
| Front finish | Steel grill (18 gauge) | |
| Mounting & handling | Rigging points | 3 x M6 mounting bracket installation holes on both sides |
| Colours | Black (RAL9004) (BASO12/B) | |
| White (RAL9003) (BASO12/W) | ||
VARIANTS
- BASO12/B – Black version
- BASO12/W – White version
