The ARES5A is a 2-way active speaker system consisting of an active and passive unit to be linked with each other. It offers an easy and flexible solution for a wide variety of applications. The 2-way loudspeaker is carefully constructed out of high quality components resulting in a 5 ¼” woofer and a ½” high frequency tweeter. This craftmanship in combination with an integrated DSP is creating an extremely clear and powerful sound experience for a wide range of applications.

SYSTEM SPECIFICATIONS

Continuous power (AES) 2 x 20 W
Program power handling 2 x 40 W
Sensitivity (1W/1m) 89 dB
Sound Pressure (Max. W/1m) 105 dB
Frequency Response (± 3 dB) 80 Hz – 20 kHz
Power Consumption Nominal (1/8 MUP) 11.3 W
Standby < 0.35 W

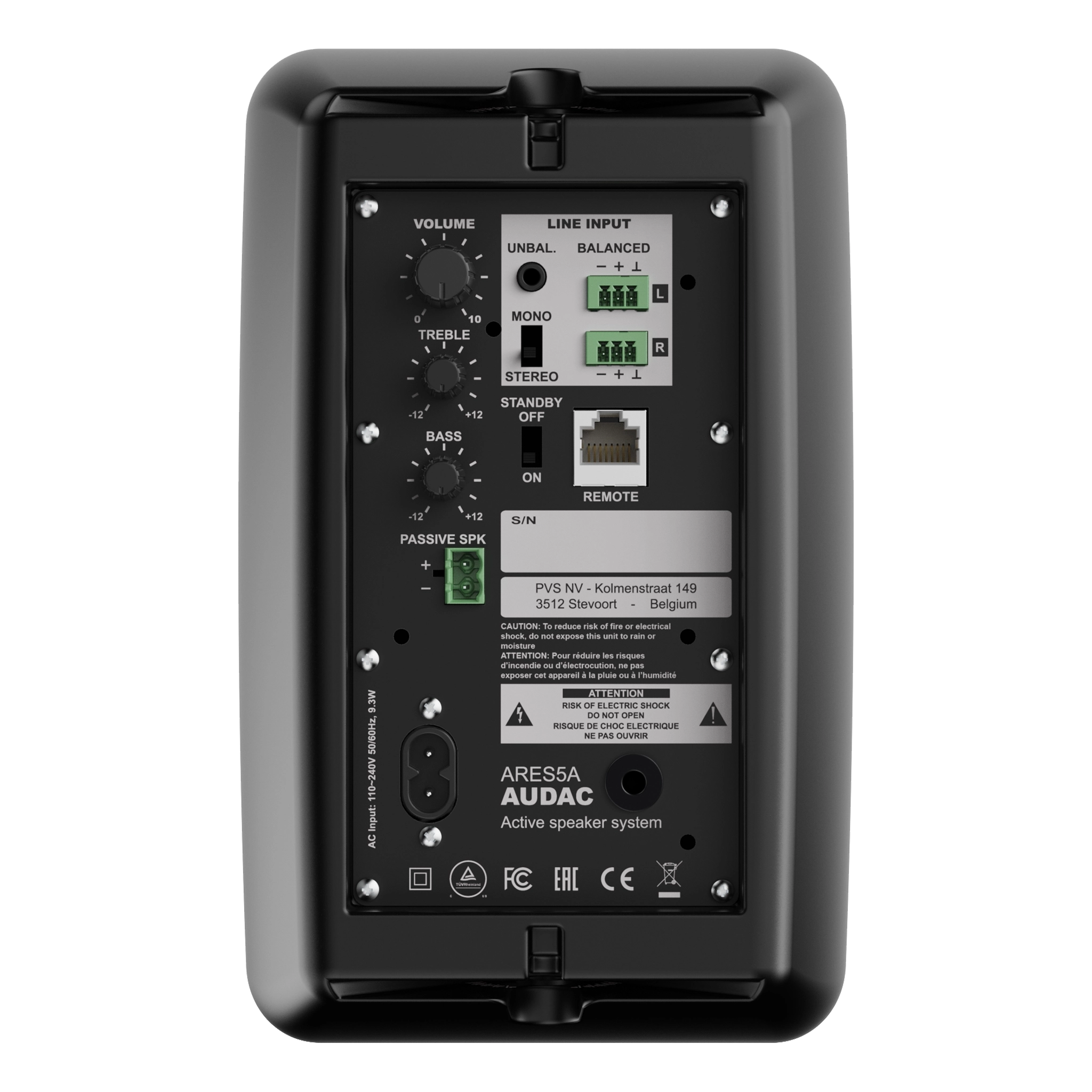

Inputs Balanced Stereo Connector 2 x 3-pin Euro Terminal Block (Pitch – 3.81 mm)
Unbalanced Stereo Connector 3.5 mm Jack (2x)
Remote Connector RJ45
Power Supply 100 ~ 240 V AC / 50 ~ 60 Hz
Connector IEC C7/C8 power inlet
Connectors Remote control RJ45
Outputs Passive loudspeaker 2-pin Euro Terminal Block (Pitch – 5.08 mm)
Drivers HF 13 mm (PEI tweeter)
LF 5 1/4″ (Polypropylene)
Dispersion Horizontal 210° (Average -6 dB / 100 Hz – 10 kHz)
Vertical 205° (Average -6 dB / 100 Hz – 10 kHz)





PRODUCT FEATURE

Dimensions 150 x 240 x 146 mm (W x H x D) (excl bracket) & 150 x 240 x 194 mm (incl bracket)
Weight 3.5 kg (pair)
Colours Black (RAL9003)
White (RAL9005)
Construction ABS
Front finish Powder coated steel grill with lining
Bracket Powder Coated steel
Construction Impact & UV resistant ABS
Colours Black (RAL9005) (ARES5A/B)
White (RAL9003) (ARES5A/W)
Accessories Included Mounting bracket
Power cable
3.5 m connection cable speaker
Wall screws and plugs
Optional WP205 – ARES5A wall panel

VARIANTS

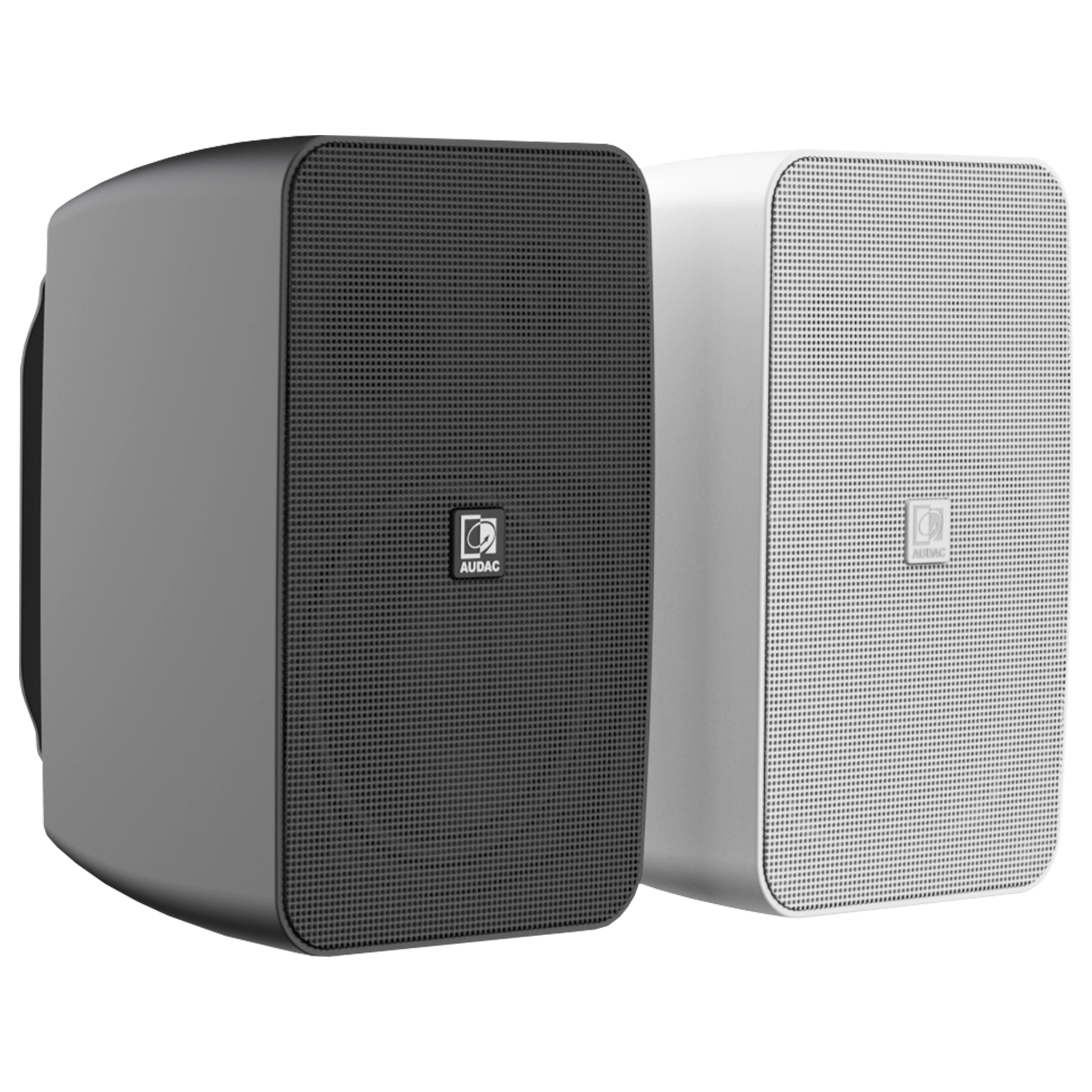

  • ARES5A/B – Black version
  • ARES5A/W – White version
