AE-4D

Description

4 AES / EBU input / output Dante converter to respond to various needs of contractor market and professional audio scene.

The AE-4D is a compact converter that mutually converts AES/EBU signals and 4-channel Dante signals. With half the size of a standard 1U rack, the AE-4D is suitable for different Dante systems as an exquisite AES/EBU input/output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. AE-4D supports up to 96kHz/24bit and uses XLR connectors for AES/EBU output.

Specs

• Power : PoE class 0, TASCAM PS-P1220E
• Power consumption : 3W
• Dimensions : 214(W) × 44.45(H) × 136.1(D)mm
• Weight : 795g

Key Features

• 4 AES/EBU input/output
• 4 AES/EBU inputs with sampling rate converter
• 4 Dante input/output
• Supports PoE (Power over Ethernet)
• 2 types of user control software available for Windows/Mac/iOS/Android devices:
  For full control: input/output routing selection, DSP/design/scene settings of the complete system, etc.
  For simple control: simple app design for only the necessary functions such as area volume settings, etc.
• Half-rack mountable size

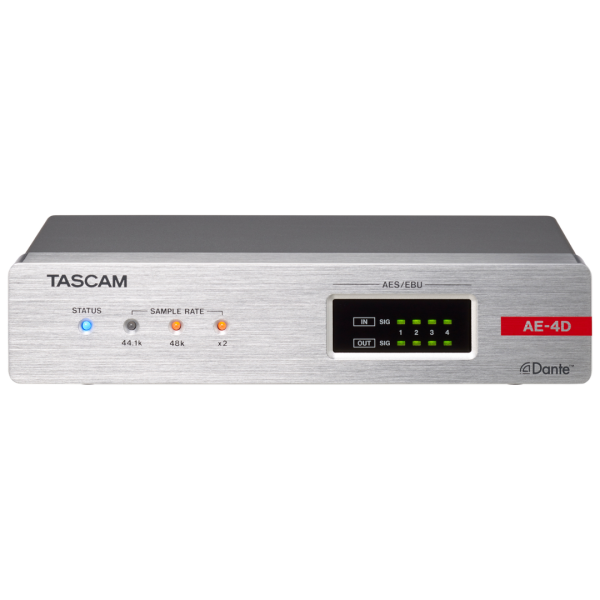

• Equipped with signal indicators that monitor digital input/output signals
