Overview
The QSC KC12 is a standout in portable PA systems, combining a refined column aesthetic with the acoustic punch of traditional box speakers. It delivers impressive performance wrapped in a user-friendly and transportable design—the perfect companion for solo artists, DJs, mobile entertainers, presenters, and event professionals.
Key Technical Features
- 3,000 W Class‑D Amplification: The system packs 3,000 watts peak power—2,000 W dedicated to the 12″ subwoofer and 1,000 W for the mid/high section—for deep, punchy bass and crisp clarity
- SPL Performance: Up to 132 dB peak SPL at 1 m, powerful enough to command attention in any venue
- Enclosure Design:
- LF: 12″ driver in a ported sub;
- MF: Two high-excursion 4″ midrange drivers;
- HF: 1″ compression driver
- Positioned within QSC’s LEAF™ (Length-Equalized Acoustic Flare) waveguide for consistent sonic coverage.
Sound Dispersion & Acoustic Innovation
The LEAF waveguide ensures 145° horizontal × 35° vertical coverage—uniform and natural sound distribution with excellent throw, unmatched by conventional column systems.

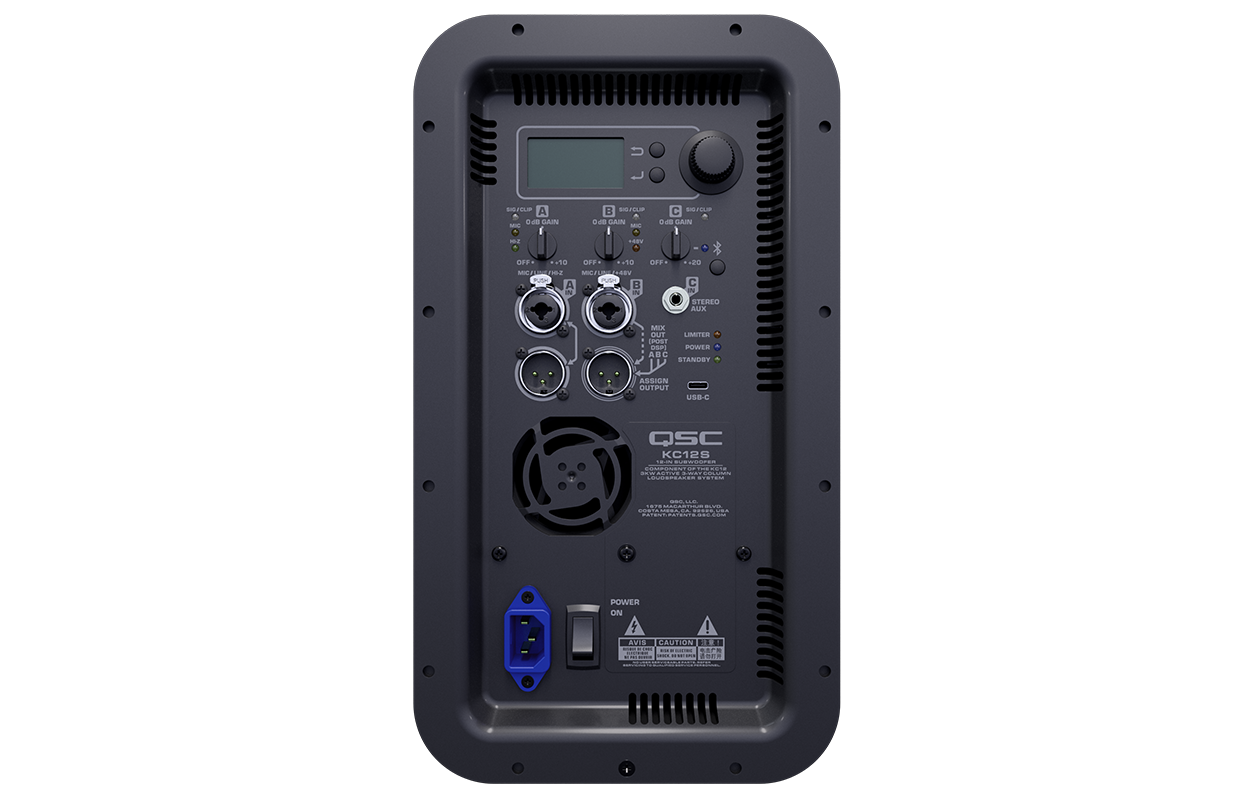

Connectivity & Control
- Mixer & Inputs: Three-channel mixer:
- Channel 1: Mic/Line/Hi-Z
- Channel 2: Mic/Line with +48 V phantom power
- Channel 3: ⅛” stereo input or Bluetooth with True Wireless Stereo (TWS).
- Outputs: XLR loop-through and DSP mix outputs.
- DSP & Display: Includes parametric EQ, presets, subwoofer controls, delay (up to 200 ms), reverb, and front-located LCD interface—and firmware updates via USB‑C.
Portability & Build
- Modular Three-Part Design: The system breaks down into the subwoofer, column top, and optional pole—ideal for flexible deployment on floors, stages, or in risers.
- Physical Specs:
- Assembly height with pole: ~2.27 m; without: ~1.34 m.
- Subwoofer weight: ~22 kg—robust, with dual handles for ease of transport.
- Included Gear: Comes with a tote bag for the top section and pole, plus an optional weather-resistant cover for the sub.
- Finishes & Warranty: Available in black and white options, backed by an extended 6‑year global warranty (upon registration within 30 days).
Use Cases at a Glance
| Scenario | Why the KC12 Works Well |
|---|---|
| Solo performances | Full-range sound and portability |
| DJs and small bands | High SPL, wide dispersion |
| Corporate AV & events | Sleek design, wireless input, built-in DSP |
| Static installs or venues | Column aesthetic and reliable coverage |
Final Thoughts
The QSC KC12 stands out as a top-tier, portable column PA system that outperforms traditional columns by delivering box-level audio quality in a sleek and convenient package. Its powerful amplification, advanced DSP features, and thoughtful ergonomics make setup and performance a breeze.
